SKU: FY65TF-SKF

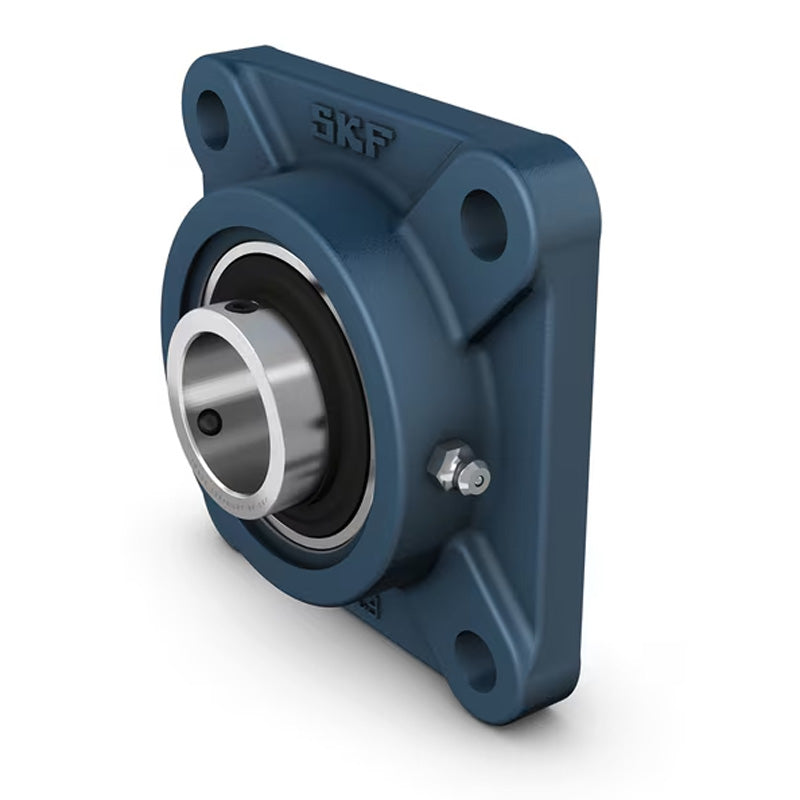

SKF FY65TF Square Cast Housing with Grub Screw 65mm Insert
SKF FY65TF Square Cast Housing with Grub Screw 65mm Insert
Regular price
€220,95
ex VAT
Regular price
Sale price
€220,95
ex VAT
In stock
Price Break
10+
€167,63
20+
€158,21
30+
€156,33
40+
€154,44
50+
€152,56
75+
€150,68
100+
€141,26
200+
€139,38
250+
€137,49
500+
€135,61
1000+
€131,84
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 65mm
- Style:
- FY
- Bolt Hole Centres:
- 149.5mm
Technical
Technical
| d | 65mm |
|---|---|
| A1 | 52.5mm |
| A2 | 17mm |
| B | 68.3mm |
| Da | 161.9mm |
| J | 149.5mm |
| L | 187mm |
| N | 18mm |
| G | 16mm |
| s1 | 42.9mm |
| T | 76.9mm |
| Static load Cr | 40 kN |
| Dynamic load Cor | 57.2 kN |
| Fatigue load limit Pu | 1.7 kN |
| Limiting speed | 3000 rpm |
| Weight | 5.3 kg |
