SKU: FYC40TF-SKF

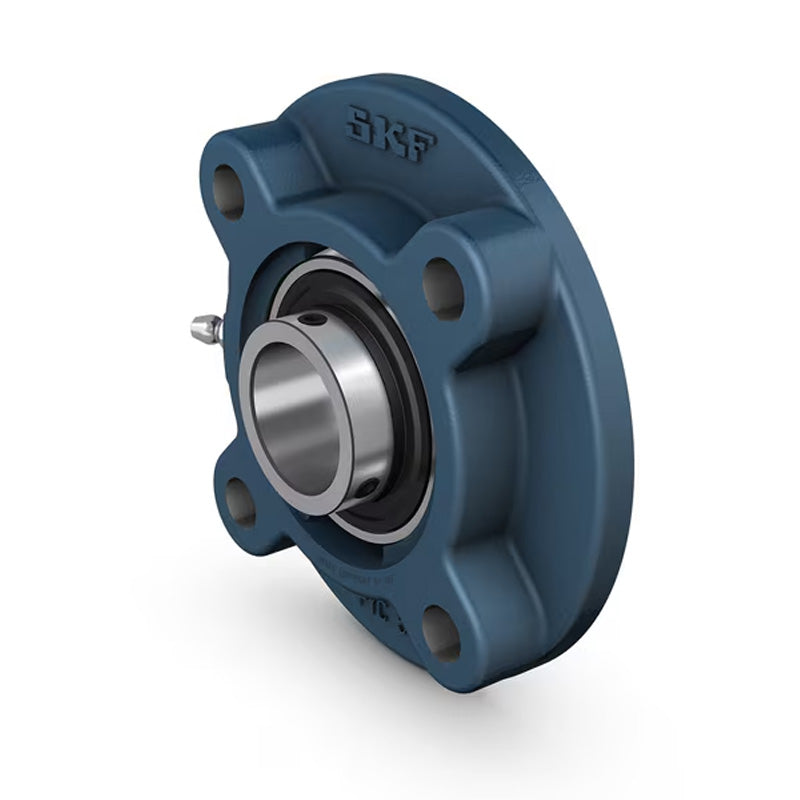

SKF FYC40TF Round Cast Housing with Grub Screw 40mm Insert
SKF FYC40TF Round Cast Housing with Grub Screw 40mm Insert
Regular price
€85,37
ex VAT
Regular price
Sale price
€85,37
ex VAT
In stock
Price Break
10+
€75,98
19+
€71,71
29+
€70,86
39+
€70,00
49+
€69,15
74+
€68,30
99+
€64,03
199+
€63,17
249+
€62,32
499+
€61,47
999+
€59,76
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Style:
- FYC
- Pitch Circle Diameter:
- 120mm
Technical
Technical
| d | 40mm |
|---|---|
| A1 | 36mm |
| A2 | 9mm |
| A3 | 10mm |
| B | 49.2mm |
| Da h8 | 100mm |
| J | 120mm |
| J1 | 84.9mm |
| L | 145mm |
| N | 14mm |
| G | 12mm |
| s1 | 30.2mm |
| T | 41.2mm |
| Static load Cr | 19 kN |
| Dynamic load Cor | 30.7 kN |
| Fatigue load limit Pu | 0.8 kN |
| Limiting speed | 4800 rpm |
| Weight | 2 kg |
