SKU: FYC55TF-SKF

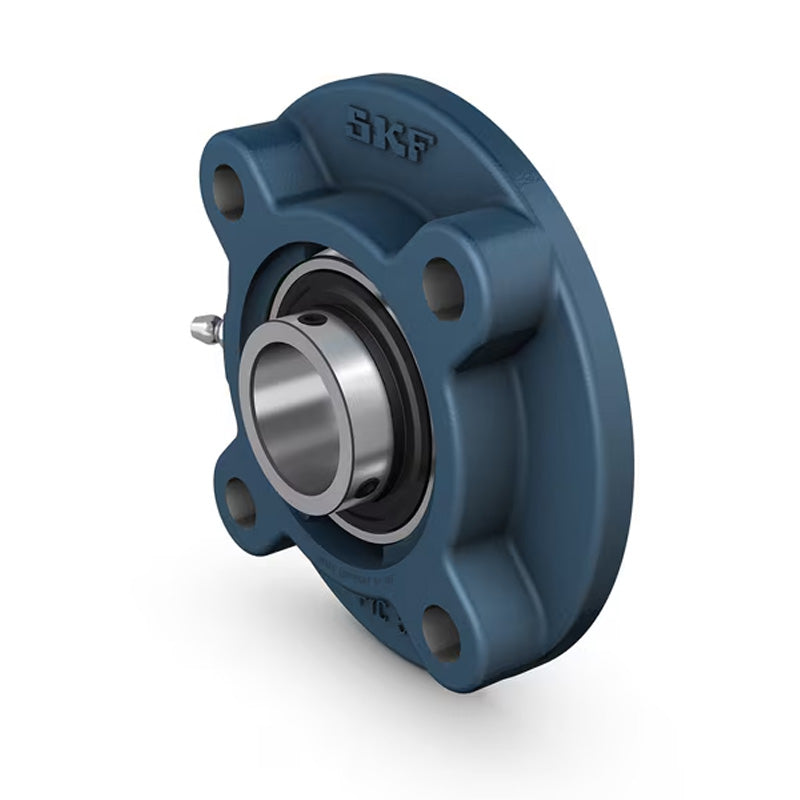

SKF FYC55TF Round Cast Housing with Grub Screw 55mm Insert
SKF FYC55TF Round Cast Housing with Grub Screw 55mm Insert
Regular price
€161,18
ex VAT
Regular price
Sale price
€161,18
ex VAT
In stock
Price Break
10+
€143,45
19+
€135,39
29+
€133,78
39+
€132,17
49+
€130,56
74+
€128,94
99+
€120,89
199+
€119,27
249+
€117,66
499+
€116,05
999+
€112,83
Couldn't load pickup availability
Description
Description
|
SKF Round Flanged Y-bearing Units with Cast Housing: These units have a round flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Style:
- FYC
- Pitch Circle Diameter:
- 150mm
Technical
Technical
| d | 55mm |
|---|---|
| A1 | 43mm |
| A2 | 15mm |
| A3 | 12mm |
| B | 55.6mm |
| Da h8 | 125mm |
| J | 150mm |
| J1 | 106.1mm |
| L | 185mm |
| N | 19mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 46.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit Pu | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 4.3 kg |
