SKU: FYJ100TF-SKF

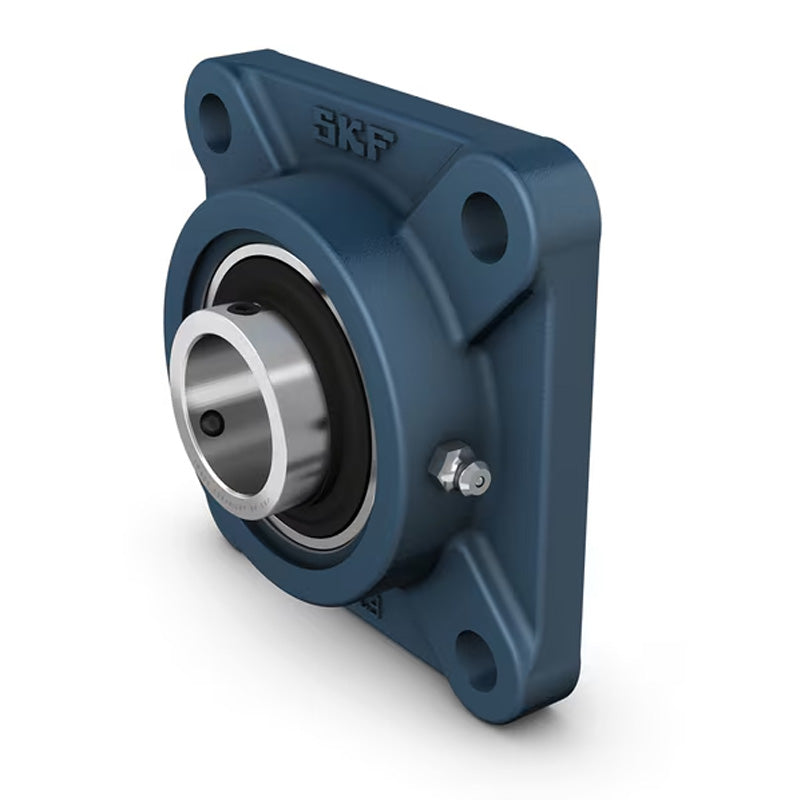

SKF FYJ100TF Square Cast Housing with Grub Screw 100mm Insert
SKF FYJ100TF Square Cast Housing with Grub Screw 100mm Insert
Regular price
€739,95
ex VAT
Regular price
Sale price
€739,95
ex VAT
In stock
Price Break
10+
€563,46
20+
€531,81
30+
€525,48
40+
€519,15
50+
€512,82
75+
€506,48
100+
€474,83
200+
€468,50
250+
€462,17
500+
€455,84
1000+
€443,17
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 100mm
- Style:
- FYJ
- Bolt Hole Centres:
- 210mm
Technical
Technical
| d | 100mm |
|---|---|
| A1 | 70mm |
| A2 | 25mm |
| B | 98.4mm |
| Da | 215.9mm |
| J | 210mm |
| L | 265mm |
| N | 27mm |
| G | 24mm |
| s1 | 63.4mm |
| T | 107.5mm |
| Static load Cr | 93 kN |
| Dynamic load Cor | 124 kN |
| Fatigue load limit Pu | 3.35 kN |
| Limiting speed | 1900 rpm |
| Weight | 15.2 kg |
