SKU: FYJ90TF-SKF

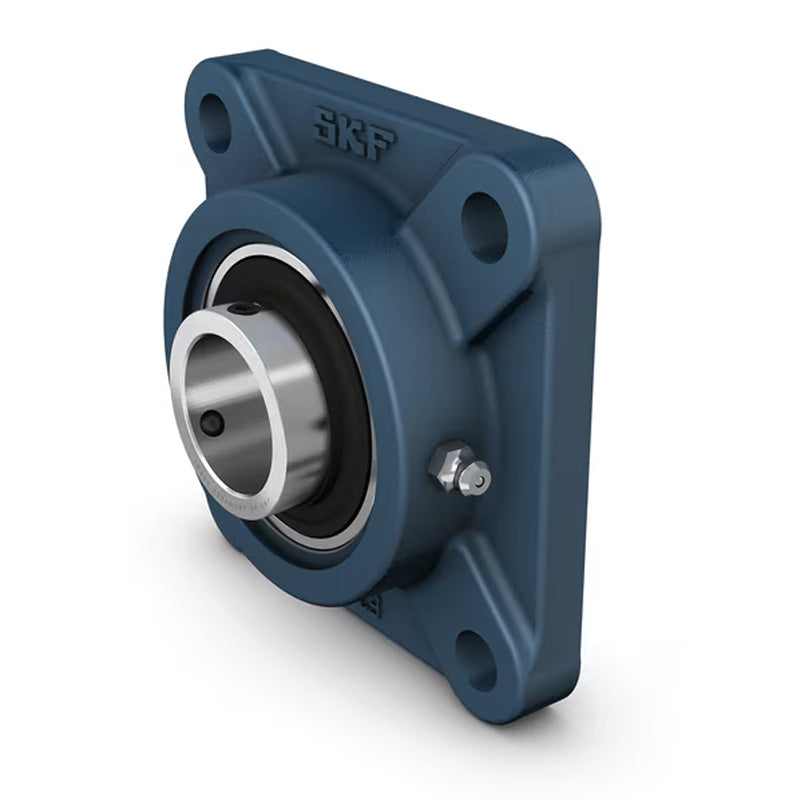

SKF FYJ90TF Square Cast Housing with Grub Screw 90mm Insert
SKF FYJ90TF Square Cast Housing with Grub Screw 90mm Insert
Regular price
€604,95
ex VAT
Regular price
Sale price
€604,95
ex VAT
In stock
Price Break
10+
€460,46
20+
€434,59
30+
€429,41
40+
€424,24
50+
€419,07
75+
€413,89
100+
€388,02
200+
€382,85
250+
€377,68
500+
€372,50
1000+
€362,16
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 90mm
- Style:
- FYJ
- Bolt Hole Centres:
- 187mm
Technical
Technical
| d | 90mm |
|---|---|
| A1 | 63.4mm |
| A2 | 23.4mm |
| B | 89mm |
| Da | 193.7mm |
| J | 187mm |
| L | 235mm |
| N | 23mm |
| G | 20mm |
| s1 | 54mm |
| T | 94mm |
| Static load Cr | 72 kN |
| Dynamic load Cor | 95.6 kN |
| Fatigue load limit Pu | 2.7 kN |
| Limiting speed | 2000 rpm |
| Weight | 11.5 kg |
