SKU: FYM1.15/16TF-SKF

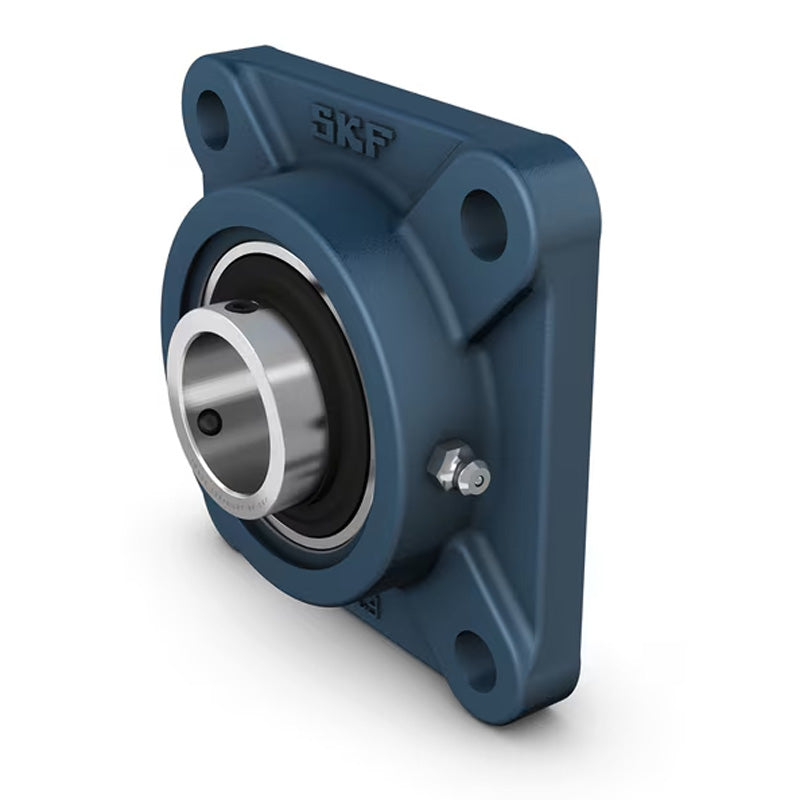

SKF FYM1-15/16TF Square Cast Housing with Grub Screw 1-15/16 inch Insert
SKF FYM1-15/16TF Square Cast Housing with Grub Screw 1-15/16 inch Insert
Regular price
€138,95
ex VAT
Regular price
Sale price
€138,95
ex VAT
In stock
Price Break
10+
€105,70
20+
€99,76
30+
€98,58
40+
€97,39
50+
€96,20
75+
€95,01
100+
€89,07
200+
€87,89
250+
€86,70
500+
€85,51
1000+
€83,14
Description
Description
|
SKF Square Flanged Y-bearing Units with Cast Housing: These units have a square flange and four holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 49.21mm = 1.937 (1-15/16) inch
- Style:
- FYM
- Bolt Hole Centres:
- 130mm
Technical
Technical
| d | 1-15/16 inch |
|---|---|
| A1 | 47.5mm |
| A2 | 16mm |
| B | 55.6mm |
| J | 130mm |
| L | 162mm |
| G | 16mm |
| s1 | 33.4mm |
| T | 64.4mm |
| Static load Cr | 29 kN |
| Dynamic load Cor | 43.6 kN |
| Fatigue load limit | 1.25 kN |
| Limiting speed | 3600 rpm |
| Weight | 4 kg |
| Housing | Insert |
