SKU: FYT1/2FM-SKF

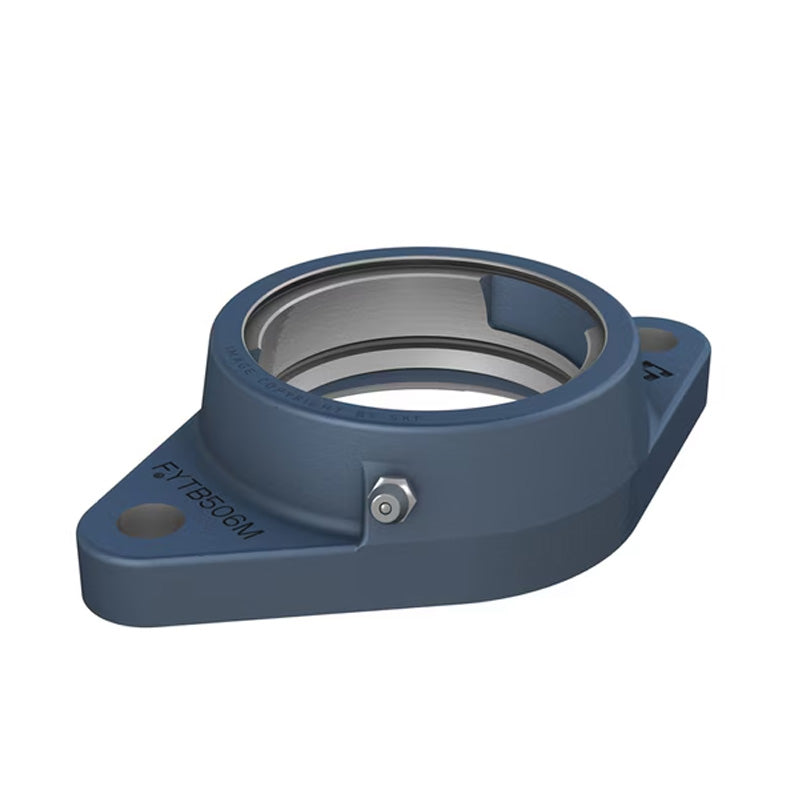

SKF FYT1/2FM Oval Cast Housing with Grub Screw 1/2 inch Insert
SKF FYT1/2FM Oval Cast Housing with Grub Screw 1/2 inch Insert
Regular price
€47,95
ex VAT
Regular price
Sale price
€47,95
ex VAT
In stock
Price Break
10+
€36,45
20+
€34,41
30+
€34,00
40+
€33,59
50+
€33,18
75+
€32,77
100+
€30,72
200+
€30,31
250+
€29,90
500+
€29,49
1000+
€28,67
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 12.7mm = 0.5 (1/2) inch
- Style:
- FYT
- Bolt Hole Centres:
- 76.2mm
Technical
Technical

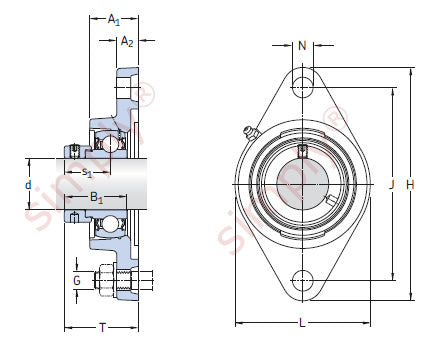

| d | 1/2 inch |
|---|---|
| A1 | 23.4mm |
| A2 | 11.5mm |
| B1 | 26.6mm |
| H | 98.5mm |
| J | 76.2mm |
| L | 54mm |
| N | 33.3mm |
| G | 30mm |
| s1 | 22.3mm |
| T | 36.8mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.35 kg |
| Housing | Insert |
