SKU: FYT1.3/4FM-SKF

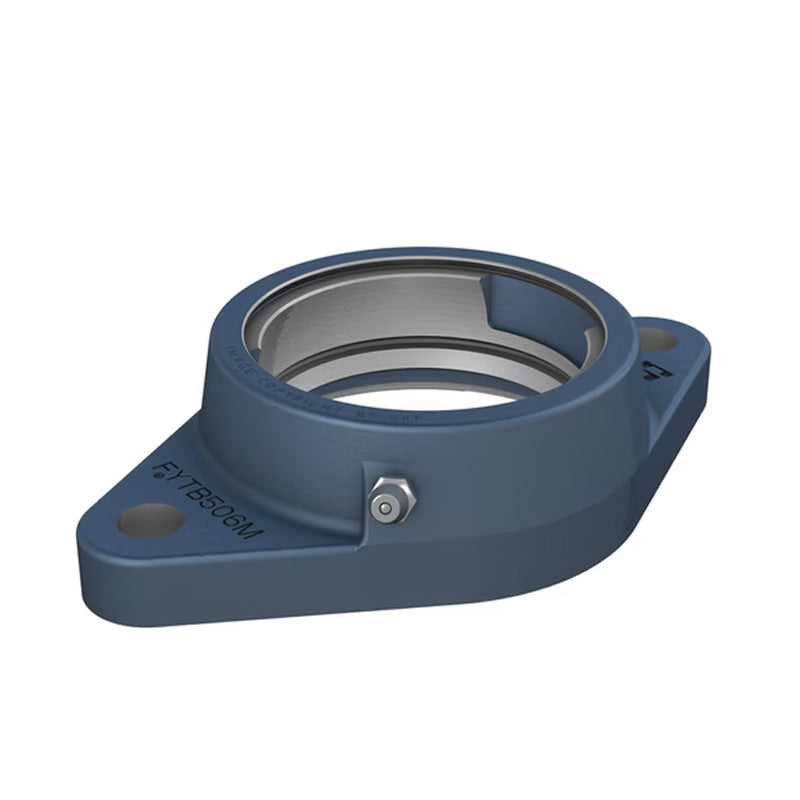

SKF FYT1-3/4FM Oval Cast Housing with Grub Screw 1-3/4 inch Insert
SKF FYT1-3/4FM Oval Cast Housing with Grub Screw 1-3/4 inch Insert
Regular price
€72,95
ex VAT
Regular price
Sale price
€72,95
ex VAT
In stock
Price Break
10+
€55,55
20+
€52,43
30+
€51,80
40+
€51,18
50+
€50,55
75+
€49,93
100+
€46,81
200+
€46,18
250+
€45,56
500+
€44,94
1000+
€43,69
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FYT
- Bolt Hole Centres:
- 348.4mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 34mm |
| B1 | 43.7mm |
| H | 178.5mm |
| J | 348.4mm |
| L | 333mm |
| N | 35.9mm |
| G | 34mm |
| s1 | 32.7mm |
| T | 56.7mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| Weight | 1.85 kg |
| Housing | Insert |
