SKU: FYT1.3/4TF/VA228-SKF

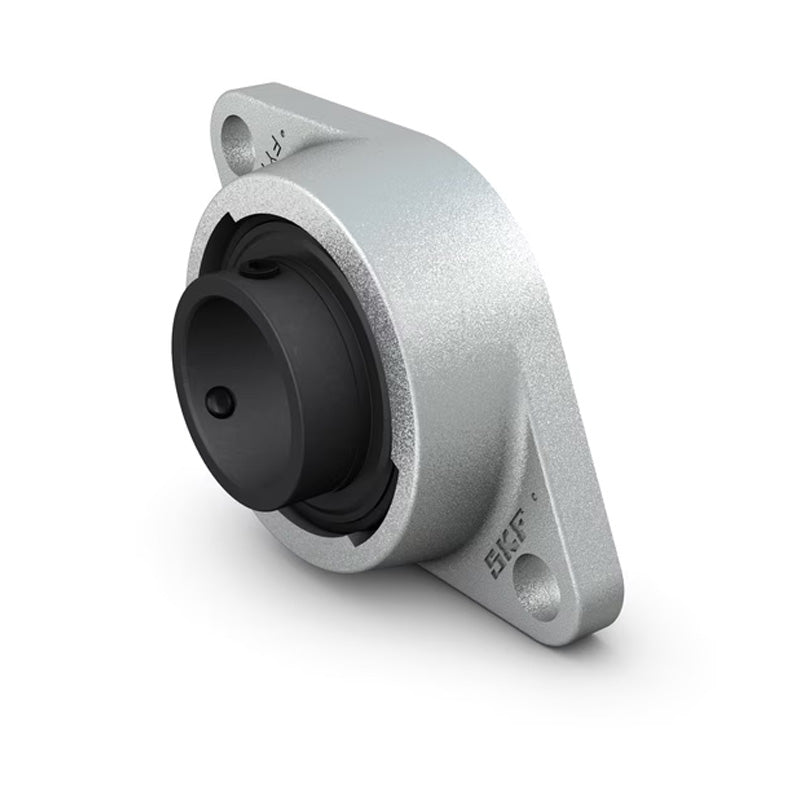

SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch

Name: SKF FYT134TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Graphite Cage Insert for Imperial Shaft 1-3/4 inch
Brand: SKF
SKU: FYT1.3/4TF/VA228-SKF
Price: 322.95 EUR
Availability: InStock

€322,95 ex VAT

Sale Sold out

In stock

Price Break

10+ €245,52

19+ €231,72

29+ €228,97

39+ €226,21

49+ €223,45

74+ €220,69

99+ €206,90

199+ €204,14

249+ €201,38

499+ €198,62

999+ €193,10

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius

Brand / Quality:: SKF - High Quality
Inside Diameter:: 44.45mm = 1.75 (1-3/4) inch
Temperature Range:: High Temp

Technical

d	1-3/4 inch
A1	39mm
A2	14mm
B	49.2mm
H	178.5mm
J	148.5mm
L	111mm
N	15.9mm
G	14mm
T	54.2mm
Static load Co	21.6 kN
Weight	1.8 kg
