SKU: FYT15/16FM-SKF
SKF FYT15/16FM Oval Cast Housing with Grub Screw 15/16 inch Insert
SKF FYT15/16FM Oval Cast Housing with Grub Screw 15/16 inch Insert
Regular price
€55,11
ex VAT
Regular price
Sale price
€55,11
ex VAT
In stock
Price Break
10+
€49,05
19+
€46,29
29+
€45,74
39+
€45,19
49+
€44,64
74+
€44,09
99+
€41,33
199+
€40,78
249+
€40,23
499+
€39,68
999+
€38,58
Couldn't load pickup availability
Description
Description
|

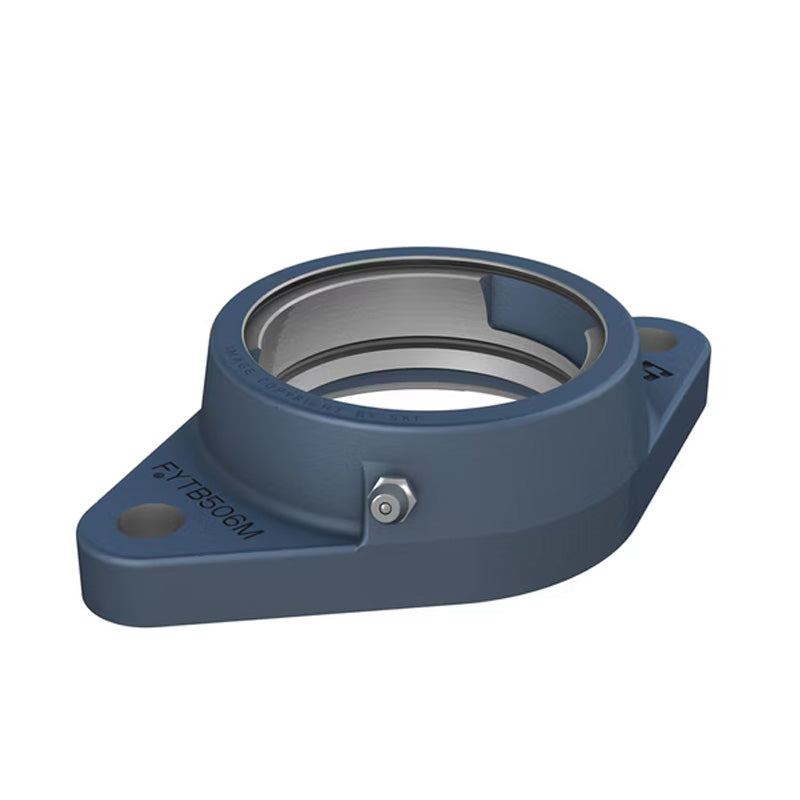

SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 23.81mm = 0.937 (15/16) inch
- Style:
- FYT
- Bolt Hole Centres:
- 98.8mm
Technical
Technical
| d | 15/16 inch |
|---|---|
| A1 | 30mm |
| A2 | 32mm |
| B1 | 33mm |
| H | 324mm |
| J | 98.8mm |
| L | 70mm |
| N | 32.7mm |
| G | 30mm |
| s1 | 23.5mm |
| T | 42.5mm |
| Static load Cr | 7.8 kN |
| Dynamic load Cor | 14 kN |
| Fatigue load limit | 0.335 kN |
| Limiting speed | 7000 rpm |
| Weight | 0.66 kg |
| Housing | Insert |
