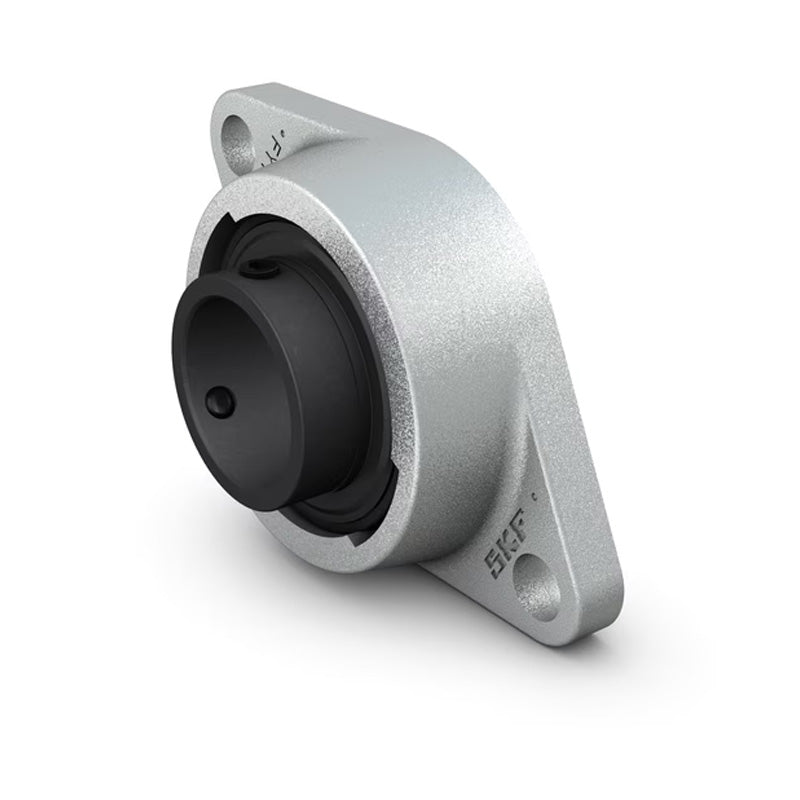

• SKF FYT45TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
1 1

SKU: FYT45TF/VA228-SKF

SKF FYT45TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm

SKF FYT45TFVA228 Y Bearing Two Bolt Oval High Temperature Flange Unit Housing with Steel Cage Insert for Metric Shaft 45mm
€325,95 ex VAT
€325,95 ex VAT
Sale Sold out

In stock

Price Break
10+ €247,87
19+ €233,94
29+ €231,16
39+ €228,37
49+ €225,59
74+ €222,80
99+ €208,88
199+ €206,09
249+ €203,31
499+ €200,52
999+ €194,95
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF High Temperature Housings and Bearing Inserts: VA228 have a grey cast iron housing and have a coronet type graphite cages, they are lubricated with a polyalkylene glycol/graphite mixture and can be used at temperatures from -50 deg to +350 deg Celsius, at prolonged use over 200 deg Celsius dry lubricant pertains. All versions are characterised by their BLACK PHOSPHATED COATING on the inserts. They have a max rotational speed of 100 rpm
Benefits:High temp tolerance from -50 to +350 deg Celsius
Brand / Quality:
SKF - High Quality
Inside Diameter:
45mm
Temperature Range:
High Temp
Technical
d 45mm
A1 39mm
A2 14mm
B 49.2mm
H 178.5mm
J 148.5mm
L 111mm
N 15.9mm
G 14mm
T 54.2mm
Dynamic load C 33.2 kN
Static load Co 21.6 kN
Weight 1.8 kg
