SKU: FYTB1.3/4TF-SKF

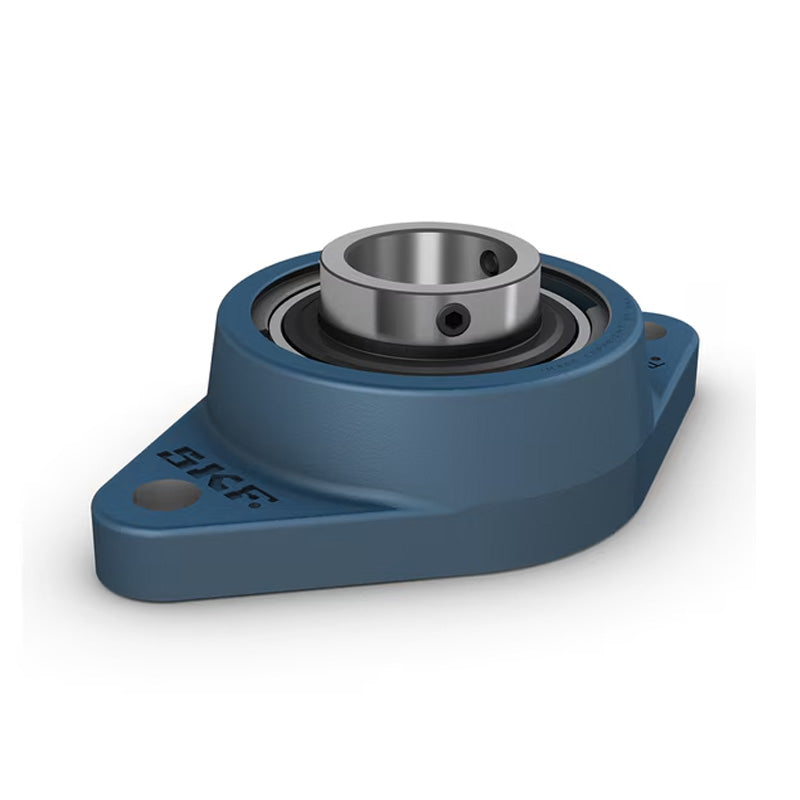

SKF FYTB1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
SKF FYTB1-3/4TF Square Cast Housing with Grub Screw 1-3/4 inch Insert
Regular price
€106,95
ex VAT
Regular price
Sale price
€106,95
ex VAT
In stock
Price Break
10+
€80,87
20+
€76,33
30+
€75,42
40+
€74,51
50+
€73,60
75+
€72,69
100+
€68,15
200+
€67,24
250+
€66,33
500+
€65,42
1000+
€63,61
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 44.45mm = 1.75 (1-3/4) inch
- Style:
- FYTB
- Bolt Hole Centres:
- 148.5mm
Technical
Technical
| d | 1-3/4 inch |
|---|---|
| A1 | 39mm |
| A2 | 14mm |
| B | 49.2mm |
| Da | 98.4mm |
| H | 178.5mm |
| J | 148.5mm |
| L | 111mm |
| N | 16mm |
| G | 14mm |
| s1 | 30.2mm |
| T | 54.2mm |
| Static load Cr | 21.6 kN |
| Dynamic load Cor | 33.2 kN |
| Fatigue load limit | 0.915 kN |
| Limiting speed | 4300 rpm |
| A5 | 23mm |
| Weight | 1.8 kg |
| Housing | FYTB509M |
| Insert | YAR209-112-2F |
