SKU: FYTB15FM-SKF

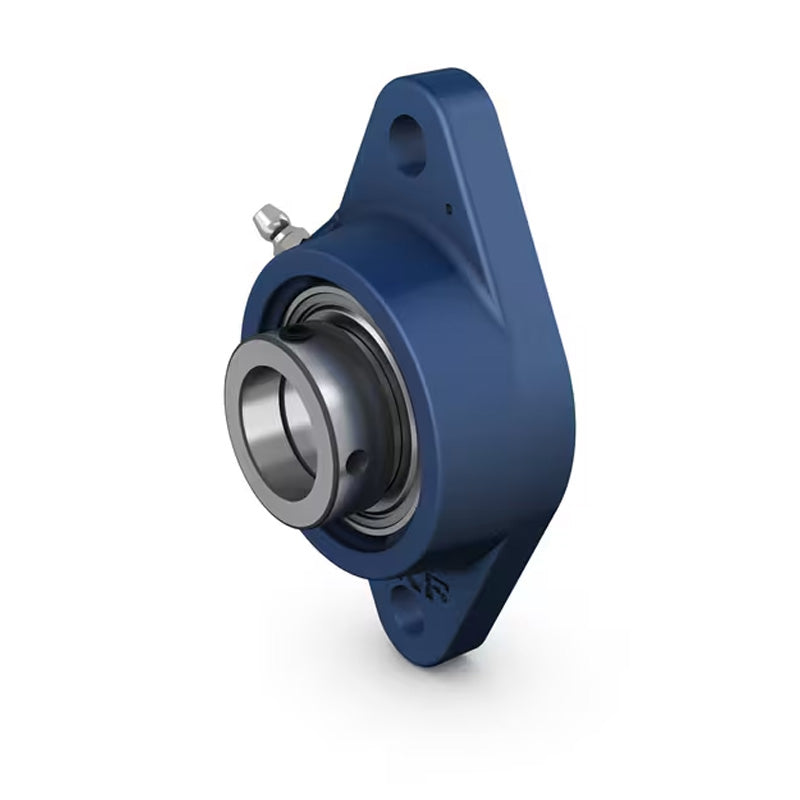

SKF FYTB15FM Oval Cast Housing with Grub Screw 15mm Insert
SKF FYTB15FM Oval Cast Housing with Grub Screw 15mm Insert
Regular price
€42,71
ex VAT
Regular price
Sale price
€42,71
ex VAT
In stock
Price Break
10+
€38,01
19+
€35,88
29+
€35,45
39+
€35,02
49+
€34,60
74+
€34,17
99+
€32,03
199+
€31,61
249+
€31,18
499+
€30,75
999+
€29,90
Couldn't load pickup availability
Description
Description
|
SKF Oval Flanged Y-bearing Units with Cast Housing and Grub Screws: These units have an oval flange and two holes for attachment bolts. A grease fitting in the housing allows the unit to be re-lubricated. This makes them especially suitable for bearing arrangements that operate under high levels of contamination, high speeds, high temperatures or relatively heavy loads. Benefits: Grease fitting allows re-lubrication |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 15mm
- Style:
- FYTB
- Bolt Hole Centres:
- 76.5mm
Technical
Technical
| d | 15mm |
|---|---|
| A1 | 26mm |
| A2 | 11mm |
| B1 | 28.6mm |
| Da | 50.8mm |
| H | 98.5mm |
| J | 76.5mm |
| L | 57mm |
| N | 11.5mm |
| G | 10mm |
| s1 | 22.1mm |
| T | 39.1mm |
| Static load Cr | 4.75 kN |
| Dynamic load Cor | 9.56 kN |
| Fatigue load limit Pu | 0.2 kN |
| Limiting speed | 9500 rpm |
| Weight | 0.42 kg |
