SKU: GE120-KRR-B-INA

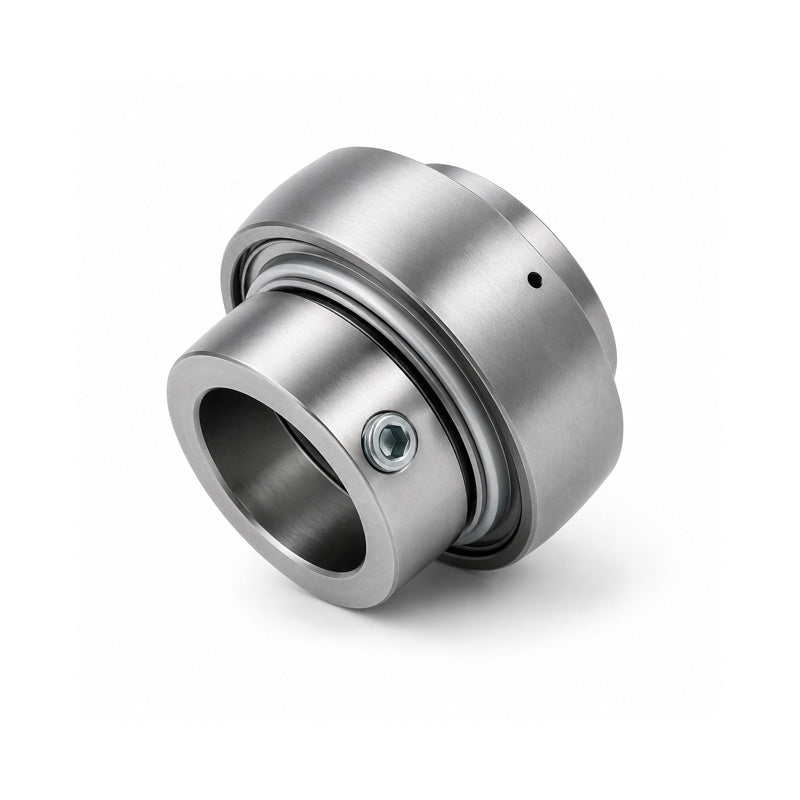

INA GE120XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 120x215x81mm
INA GE120XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Eccentric Collar 120x215x81mm
Regular price
€816,95
ex VAT
Regular price
Sale price
€816,95
ex VAT
In stock
Price Break
3+
€621,67
5+
€586,74
10+
€579,76
15+
€572,77
20+
€565,79
30+
€558,80
40+
€523,88
50+
€516,89
60+
€509,91
75+
€502,92
100+
€488,95
Description
Description
|
INA GE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings of the bearings up to 60mm inside diameter, and locking collar in general, have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 120mm
- Outside Diameter:
- 215mm
- Width:
- 81mm
Technical
Technical
| d | 120mm |
|---|---|
| Dsp | 215mm |
| B1 | 81mm |
| B | 63.5mm |
| C | 40mm |
| C2 | 45mm |
| Ca | 12.8mm |
| D1 | 186.5mm |
| d1 | 146.4mm |
| d3 max | 152mm |
| S | 28.5mm |
| W | 6mm |
| Dynamic load Cr | 155000 N |
| Static load C0r | 131000 N |
| Weight | 7.49 kg |
