SKU: GE15UK-EU

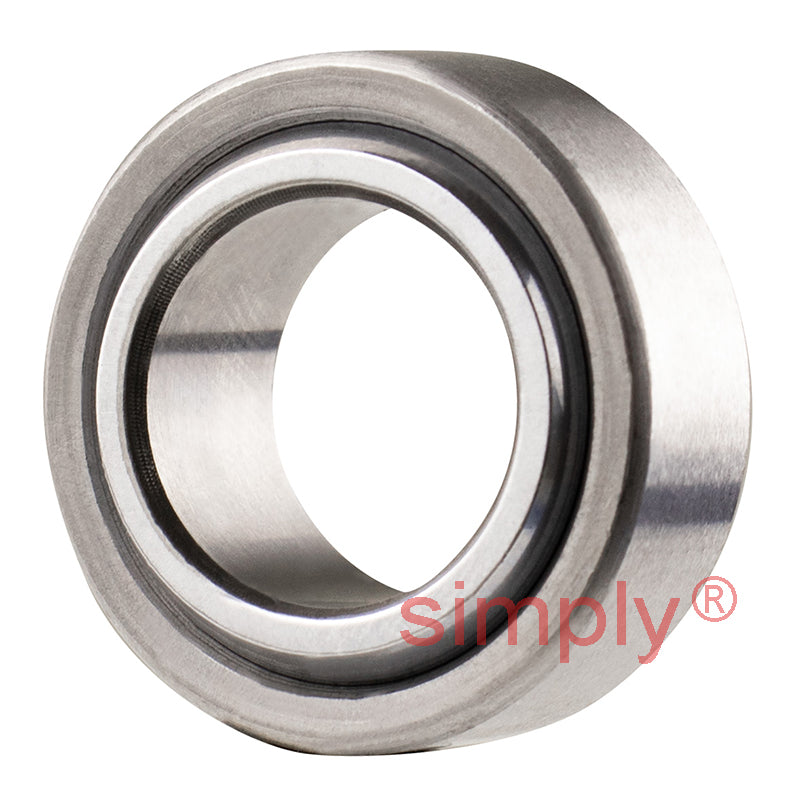

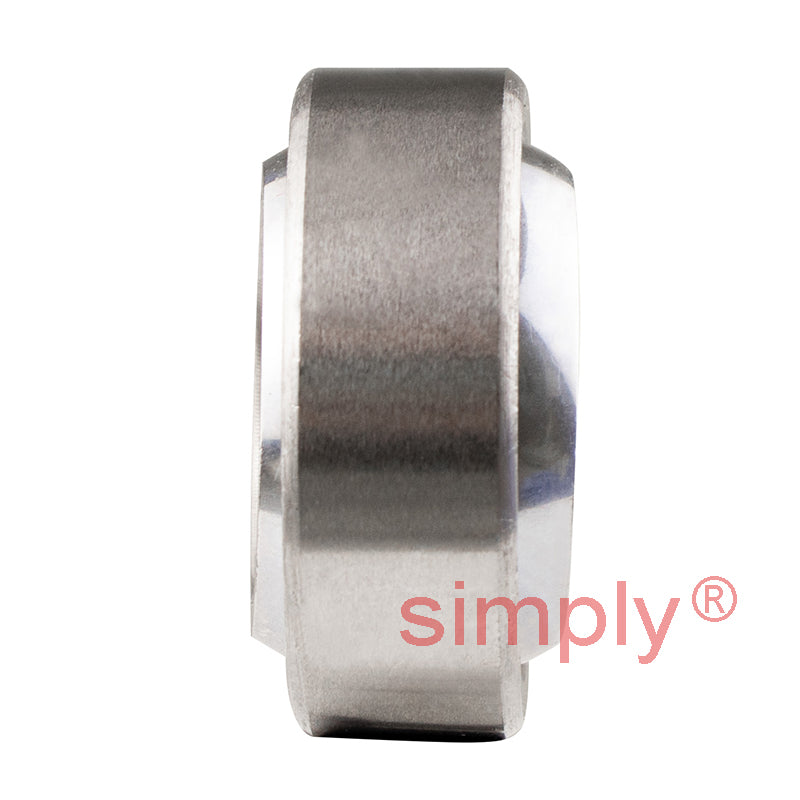

GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
GE15UK Steel / PTFE Spherical Plain Bearing 15x26x12x9mm
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
10+
€5,44
19+
€5,14
29+
€5,08
39+
€5,01
49+
€4,95
74+
€4,89
99+
€4,59
199+
€4,53
249+
€4,46
499+
€4,40
999+
€4,28
Description
Description
GE..-UK Series Spherical Plain Bearings: These maintenance-free spherical plain bearings are suitable for high load appliations where there is limited oscillating movement.
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 15mm
- Outside Diameter:
- 26mm
- Width:
- 12mm
Technical
Technical
| d | 15mm (Tolerance: 0/-0.008) |
|---|---|
| D | 26mm (Tolerance: 0/-0.009) |
| B | 12mm (Tolerance: 0/-0.12) |
| Radial internal clearance | 0-0.04mm |
| C | 9mm (Tolerance: 0/-0.24) |
| Da min | 21mm |
| da max | 18.4mm |
| dk | 22mm |
| Chamfer dimension r1s min | 0.3mm |
| Chamfer dimension r2s min | 0.3mm |
| a | 8° |
| Mass | 0.027 kg |
| Basic dynamic load, radial Cr | 17800 N |
| Basic static load, rating Cor | 44600 N |
