SKU: GE160ES2RS.EU

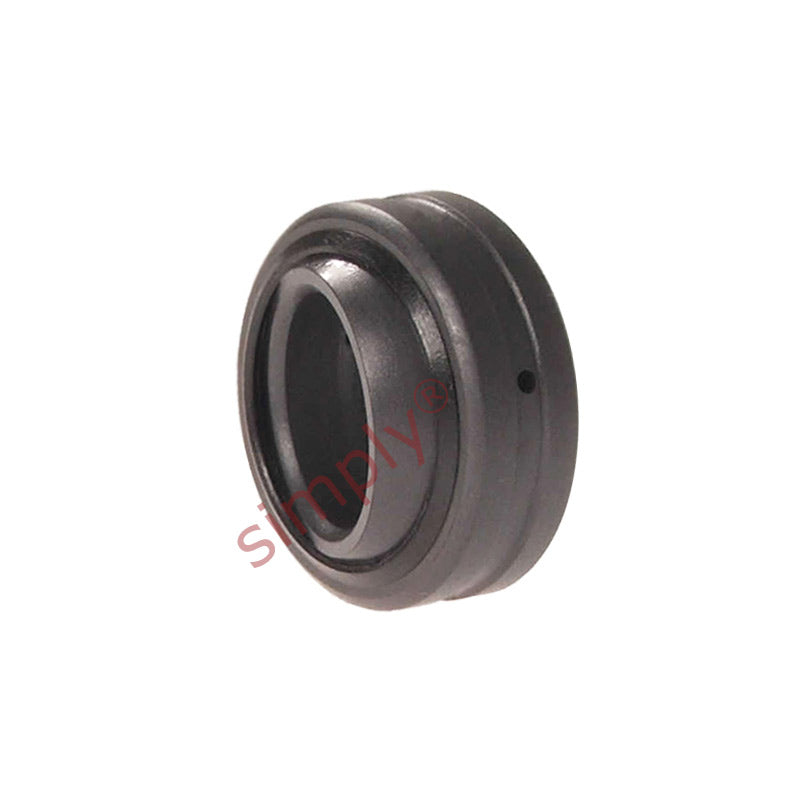

GE160ES2RS Rubber Sealed Spherical Plain Bearing 160x230x105x80mm
GE160ES2RS Rubber Sealed Spherical Plain Bearing 160x230x105x80mm
Regular price
€622,95
ex VAT
Regular price
Sale price
€622,95
ex VAT
In stock
Price Break
10+
€474,27
19+
€447,63
29+
€442,30
39+
€436,97
49+
€431,64
74+
€426,31
99+
€399,67
199+
€394,34
249+
€389,01
499+
€383,68
999+
€373,03
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 230mm
- Width:
- 105mm
Technical
Technical
| d | 160mm |
|---|---|
| D | 230mm |
| B | 105mm |
| C | 80mm |
| dk | 200mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 8° |
| Dynamic load Co | 1360 kN |
| Static load Cor | 6800 kN |
| Weight | 14.01 kg |
