SKU: GE180ES2RS.EU

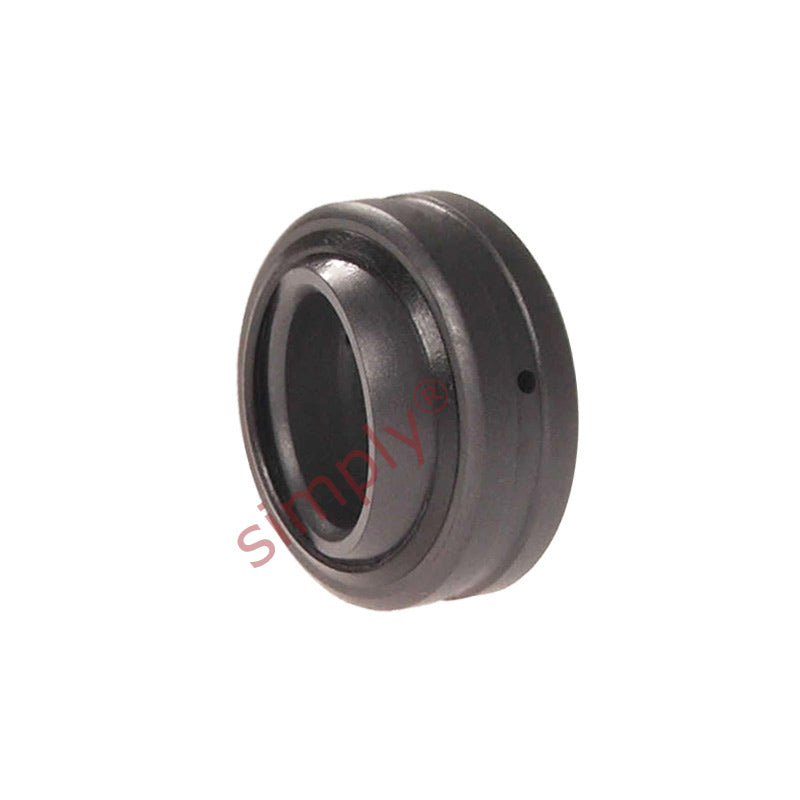

GE180ES2RS Rubber Sealed Spherical Plain Bearing 180x260x105x80mm
GE180ES2RS Rubber Sealed Spherical Plain Bearing 180x260x105x80mm
Regular price
€860,95
ex VAT
Regular price
Sale price
€860,95
ex VAT
In stock
Price Break
10+
€766,25
19+
€723,20
29+
€714,59
39+
€705,98
49+
€697,37
74+
€688,76
99+
€645,71
199+
€637,10
249+
€628,49
499+
€619,88
999+
€602,67
Couldn't load pickup availability
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 180mm
- Outside Diameter:
- 260mm
- Width:
- 105mm
Technical
Technical
| d | 180mm |
|---|---|
| D | 260mm |
| B | 105mm |
| C | 80mm |
| dk | 225mm |
| rs min | 1.1mm |
| r1s min | 1.1mm |
| Angle α | 6° |
| Dynamic load Co | 1530 kN |
| Static load Cor | 7650 kN |
| Weight | 18.65 kg |
