SKU: GE30ES2RS.EU

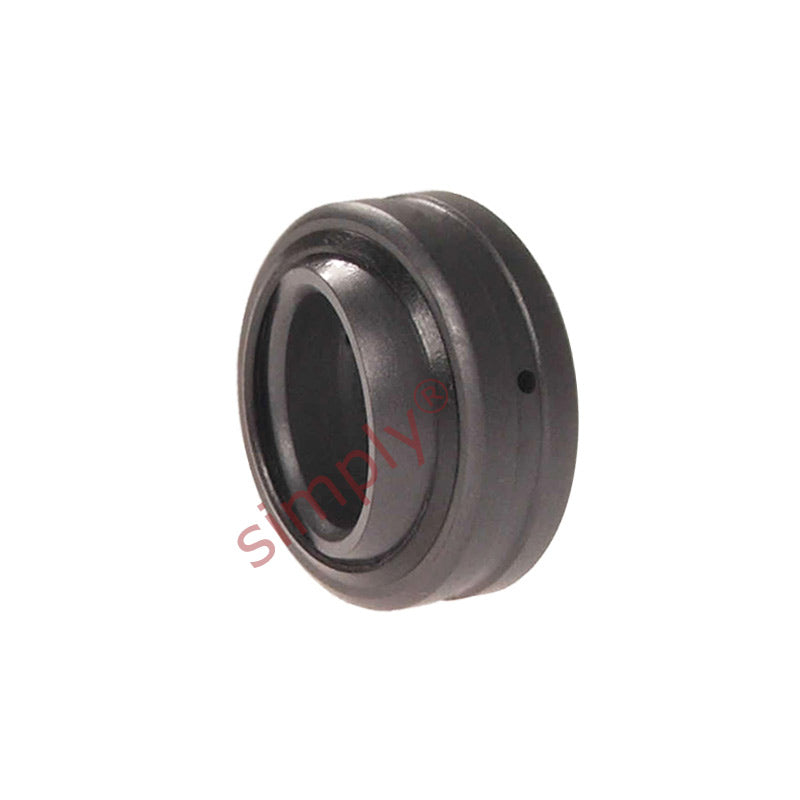

GE30ES2RS Rubber Sealed Spherical Plain Bearing 30x47x22x18mm
GE30ES2RS Rubber Sealed Spherical Plain Bearing 30x47x22x18mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
10+
€9,18
19+
€8,66
29+
€8,56
39+
€8,46
49+
€8,35
74+
€8,25
99+
€7,74
199+
€7,63
249+
€7,53
499+
€7,43
999+
€7,22
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 30mm
- Outside Diameter:
- 47mm
- Width:
- 22mm
Technical
Technical
| d | 30mm |
|---|---|
| D | 47mm |
| B | 22mm |
| C | 18mm |
| dk | 40.7mm |
| rs min | 0.6mm |
| r1s min | 0.6mm |
| Angle α | 6° |
| Dynamic load Co | 62 kN |
| Static load Cor | 310 kN |
| Weight | 0.153 kg |
