SKU: GE40-KRR-B-FA125.5-INA

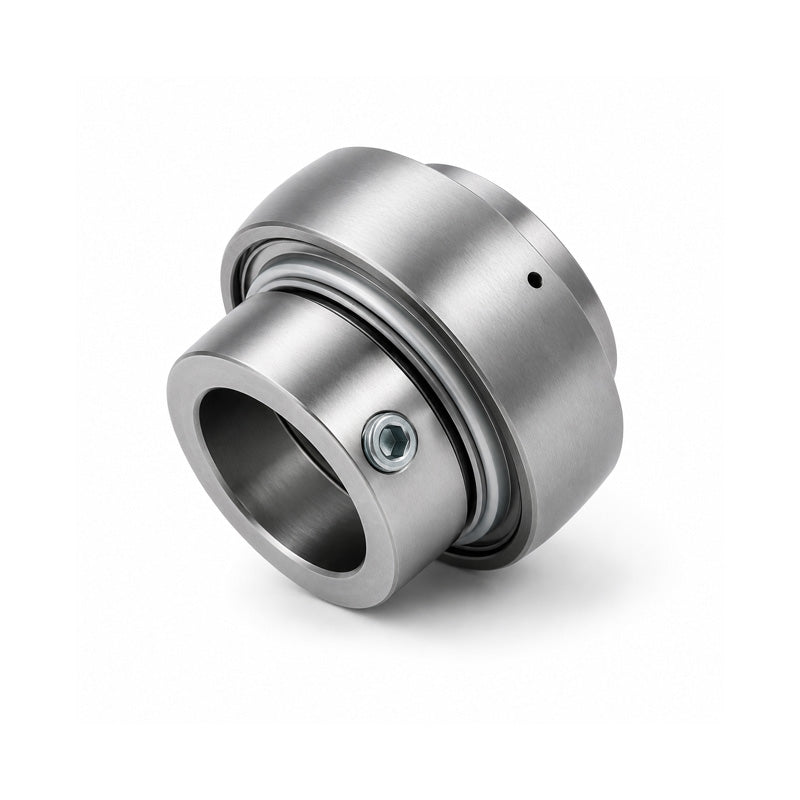

INA GE40XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 40x80x56.5mm
INA GE40XLKRRBFA125.5 Metric Spherical Outer Bearing Insert with Anti-Corrosion Protection with R Seals and Eccentric Collar 40x80x56.5mm
Regular price
€65,95
ex VAT
Regular price
Sale price
€65,95
ex VAT
In stock
Price Break
3+
€49,54
5+
€46,75
10+
€46,20
15+
€45,64
20+
€45,08
30+
€44,53
40+
€41,75
50+
€41,19
60+
€40,63
75+
€40,08
100+
€38,96
Description
Description
|
INA GE..KRR-B-FA125.5 Series Inserts: Bearing insert with spherical outer race, R seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment, anti-corrosion protection. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 80mm
- Width:
- 56.5mm
Technical
Technical
| d | 40mm |
|---|---|
| Dsp | 80mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 21mm |
| C2 | 23.5mm |
| Ca | 6.4mm |
| D1 | 68.3mm |
| d1 | 52.3mm |
| d3 max | 58mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 19800 N |
| Weight | 0.74 kg |
