INA GE45XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 45x85x56.5mm
INA GE45XLKLLB Metric Spherical Outer Bearing Insert with L Seals and Eccentric Collar 45x85x56.5mm
Regular price
€78,95
ex VAT
Regular price
Sale price
€78,95
ex VAT
In stock
Price Break
3+
€59,87
5+
€56,51
10+
€55,83
15+
€55,16
20+
€54,49
30+
€53,82
40+
€50,45
50+
€49,78
60+
€49,11
75+
€48,43
100+
€47,09
Description
Description
|

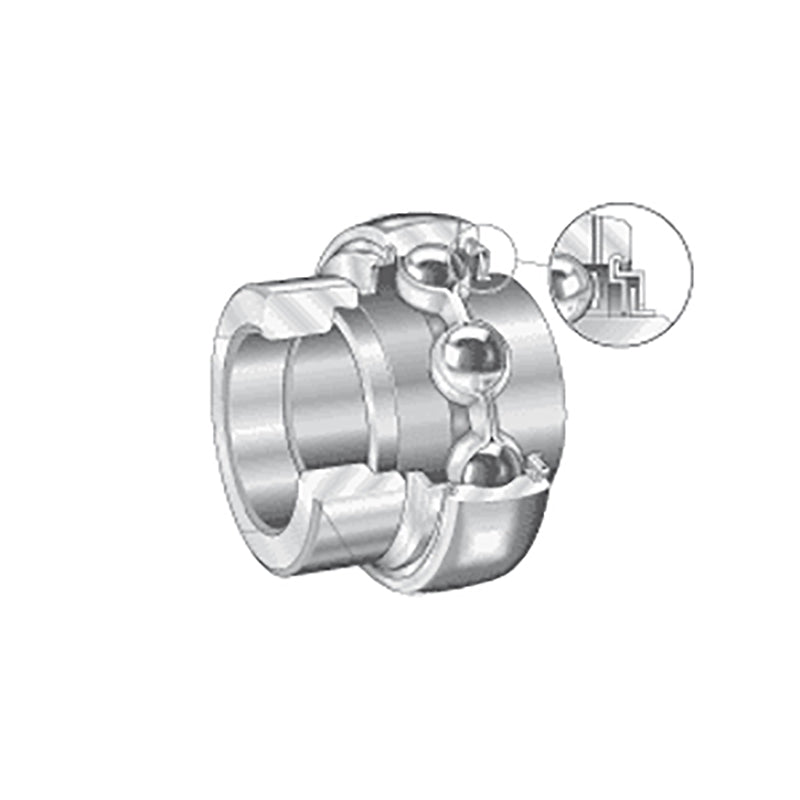

INA GE..KLL-B Series Inserts: Bearing insert with spherical outer race, L seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 85mm
- Width:
- 56.5mm
Technical
Technical
| d | 45mm |
|---|---|
| Dsp | 85mm |
| B1 | 56.5mm |
| B | 42.9mm |
| C | 22mm |
| C2 | 26.4mm |
| Ca | 6.4mm |
| D1 | 72.3mm |
| d1 | 57.9mm |
| d3 max | 63mm |
| S | 21.4mm |
| W | 5mm |
| Dynamic load Cr | 32500 N |
| Static load C0r | 20400 N |
| Weight | 0.84 kg |
