SKU: GEH70ES2RS.EU

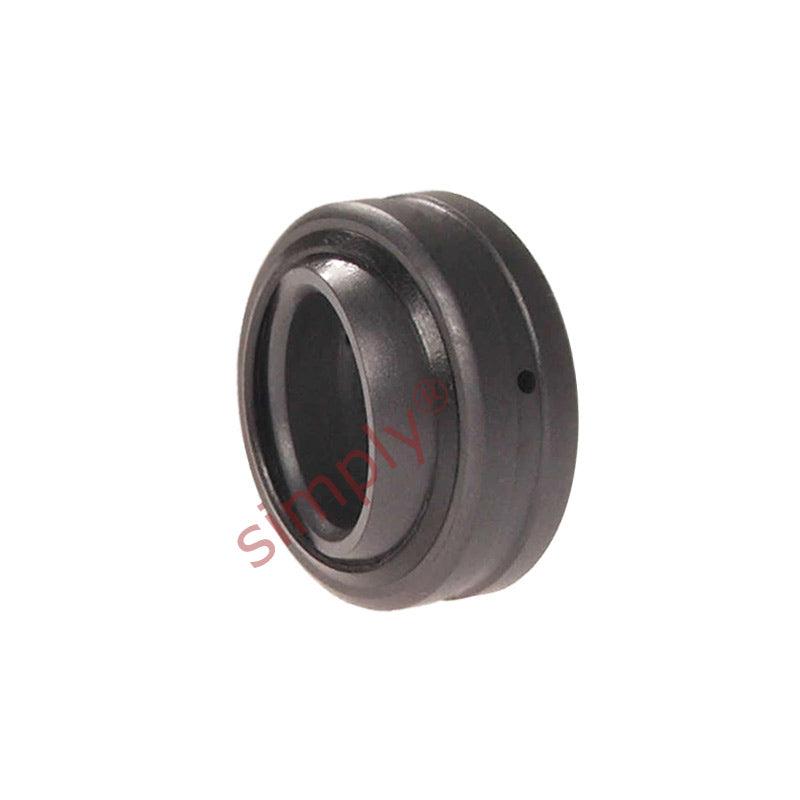

GEH70ES2RS Rubber Sealed Spherical Plain Bearing 70x120x70x45mm
GEH70ES2RS Rubber Sealed Spherical Plain Bearing 70x120x70x45mm
Regular price
€70,95
ex VAT
Regular price
Sale price
€70,95
ex VAT
In stock
Price Break
10+
€53,85
19+
€50,82
29+
€50,22
39+
€49,61
49+
€49,01
74+
€48,40
99+
€45,38
199+
€44,77
249+
€44,17
499+
€43,56
999+
€42,35
Description
Description
|
Rubber Sealed Spherical Plain Bearing: Consisting of steel raceway / body with a Gcr15 hardened Chrome steel ball (58-64 HRC) provided with an oil hole and groove Benefits: Cost effective replacement bearing, sliding surfaces are steel against steel, rubber seals Note: The outer raceway may have as part of the manufacturing process a split or crack |
- Brand / Quality:
- Simply Spherical Plain - Economy Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 120mm
- Width:
- 70mm
Technical
Technical
| d | 70mm |
|---|---|
| D | 120mm |
| B | 70mm |
| C | 45mm |
| dk | 105mm |
| rs min | 1mm |
| r1s min | 1mm |
| Angle α | 16° |
| Dynamic load Co | 400 kN |
| Static load Cor | 2000 kN |
| Weight | 3.4 kg |
