SKU: GEZ312ES-2RS-SKF
SKF GEZ312ES2RS Double Seal Spherical Plain Bearing 95.25x149.23x83.34x71.44mm
SKF GEZ312ES2RS Double Seal Spherical Plain Bearing 95.25x149.23x83.34x71.44mm
Regular price
€1.788,95
ex VAT
Regular price
Sale price
€1.788,95
ex VAT
Equivalent to: SBB602RS GEZ95ES2RS B60-LSS 37SF60-TT
In stock
Price Break
10+
€1.361,78
19+
€1.285,28
29+
€1.269,97
39+
€1.254,67
49+
€1.239,37
74+
€1.224,07
99+
€1.147,57
199+
€1.132,27
249+
€1.116,97
499+
€1.101,66
999+
€1.071,06
Description
Description
|

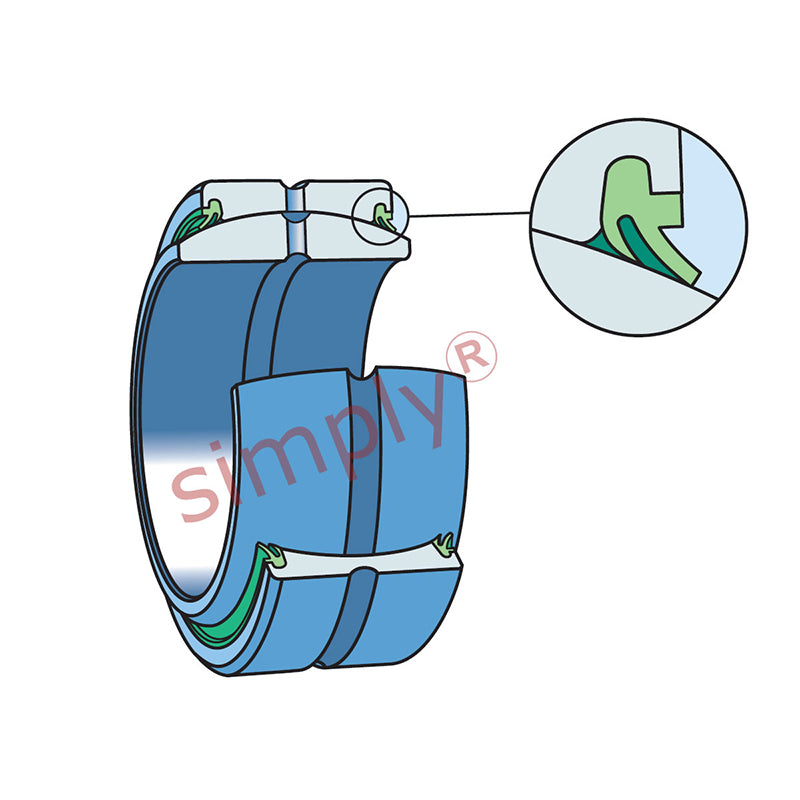

SKF GEZ..ES-2RS Series Spherical Plain Bearings: This series is classed as radial spherical plain bearings requiring maintenance. Comprising of sliding contact surfaces of steel against steel these spherical plain bearings are double lip sealed to prevent ingress of dirt and moisture and require maintenance from time to time in the form of re-lubrication via an annular lubrication groove around its outer and inner rings. Dependent on installation design the lubricant may be passed through the housing or spindle directly into the bearing at any point around the groove which has small holes to direct the lubricant onto the mating surfaces. These are imperial sized spherical plain bearings. The bearings are manganese phosphated and the sliding contact surface is then treated with a running-in lubricant. This reduces friction and wear during the running-in period. Application: Suitable for heavy static, shock or alternating loads. A characteristic of SKF steel / steel spherical plain bearings is the intentionally fractured outer ring enabling it to be sprung apart to insert the ball, thus care needs to be taken when mounting spherical plain bearings with a fractured or split outer ring, it is essential that the joint is positioned at 90 degrees to the direction of load Benefits: Re-lubricate-able, double sealed. |
Equivalent: SBB602RS GEZ95ES2RS B60-LSS 37SF60-TT
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 95.25mm = 3.75 (3-3/4) inch
- Outside Diameter:
- 149.23mm = 5.875 (5-7/8) inch
- Width:
- 83.34mm = 3.281 (3-9/32) inch
Technical
Technical
| d | 95.25mm = 3-3/4 inch |
|---|---|
| D | 149.23mm = 5-7/8 inch |
| B | 83.34mm = 3-9/32 inch |
| C | 71.44mm = 2.813 inch |
| Max misalignment angle | 6 degrees |
| Dynamic load | 780 kN |
| Static load | 2360 kN |
| dk | 136.906mm = 5.390 inch |
| b | 10.5mm = 0.413 inch |
| b1 | 8mm = 0.315 inch |
| M | 6.5mm = 0.256 inch |
| r1 min | 0.6mm = 0.024 inch |
| r2 min | 1mm = 0.039 inch |
| da min | 101.2mm = 3.984 inch |
| da max | 108.6mm = 4.276 inch |
| Da max | 143.1mm = 5.634 inch |
| Da min | 130.1mm = 5.122 inch |
| ra max | 0.6mm = 0.024 inch |
| rb max | 1mm = 0.039 inch |
| Weight | 5.8 kg |
