SKU: GLE60-KRR-B-INA

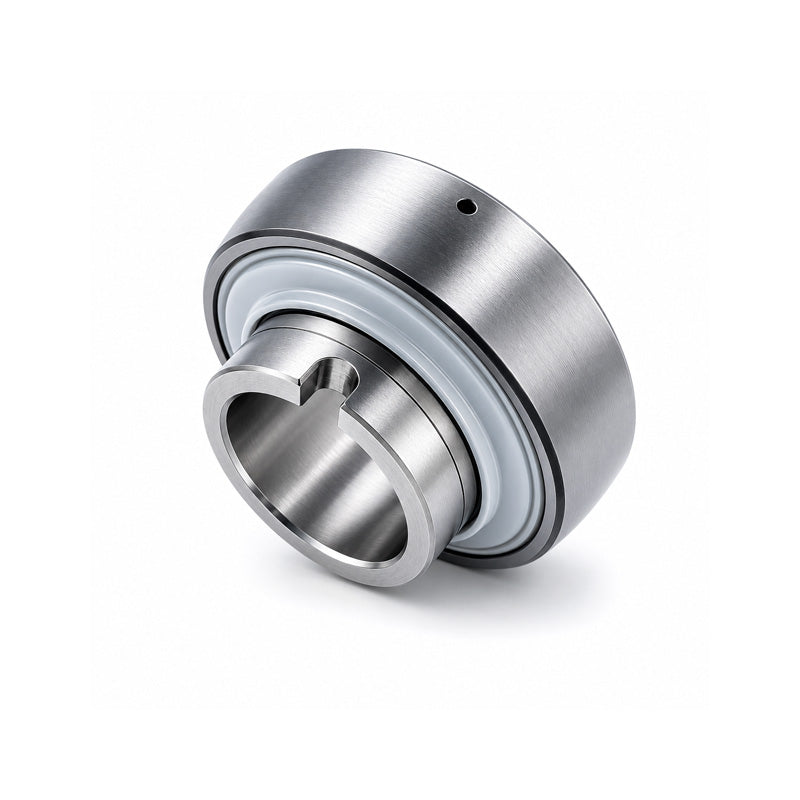

INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm
INA GLE60XLKRRB Metric Spherical Outer Bearing Insert with R Seals and Drive Slot in Inner Ring 60x110x61.9mm
Regular price
€162,95
ex VAT
Regular price
Sale price
€162,95
ex VAT
In stock
Price Break
3+
€123,35
5+
€116,42
10+
€115,03
15+
€113,64
20+
€112,26
30+
€110,87
40+
€103,94
50+
€102,56
60+
€101,17
75+
€99,78
100+
€97,01
Description
Description
|
INA GLE..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals with PTFE seal lips and a drive slot in the inner ring. These non-locating bearings are to be used at low speeds and loads to compensate for thermal elongation of the shaft. Due to the slot, they are easy to locate in a radial direction. Rotation is prevented by a drive pin on the shaft or a set collar with a pin. These bearings are suitable for drawn shafts up to grade h7. The outer ring has two lubrication holes as standard. Inner rings up to a bore diameter of 60mm have a Corrotect® coating and are thus protected against fretting corrosion. Operating temperature range: -40 deg C to +180 deg C. Benefits: Can be re-lubricated, compensation of misalignment, wide temperature range. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 110mm
- Width:
- 61.9mm
Technical
Technical
| d | 60mm |
|---|---|
| Dsp | 110mm |
| B | 61.9mm |
| b | 9mm |
| C | 24mm |
| C2 | 29mm |
| Ca | 7.2mm |
| D1 | 95.9mm |
| d1 | 76.5mm |
| N | 12mm |
| S | 24.6mm |
| Dynamic load Cr | 52000 N |
| Static load C0r | 36000 N |
| Weight | 1.46 kg |
