SKU: GRA104-206-NPP-B-AS2/V-INA

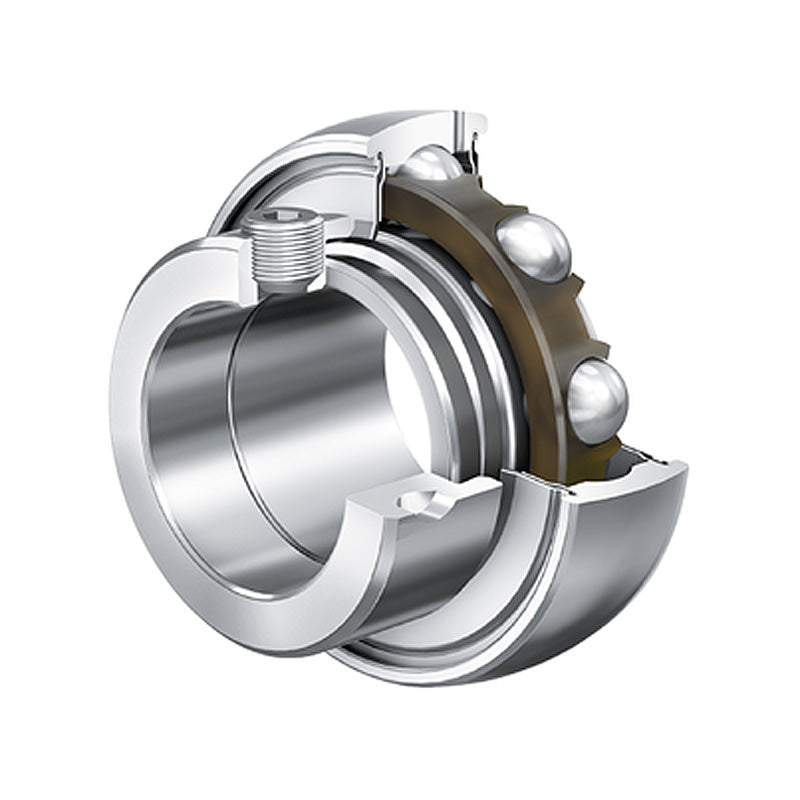

INA GRA104206NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
INA GRA104206NPPBAS2V Imperial Spherical Outer Bearing Insert with P Seals and Eccentric Collar 31.75x62x35.8mm
Regular price
€28,95
ex VAT
Regular price
Sale price
€28,95
ex VAT
In stock
Price Break
3+
€21,60
5+
€20,39
10+
€20,14
15+
€19,90
20+
€19,66
30+
€19,42
40+
€18,20
50+
€17,96
60+
€17,72
75+
€17,47
100+
€16,99
Description
Description
|
INA GRA..-NPP-B-AS2/V Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. This bearing insert has anti-corrosion protection. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, anti-corrosion protection, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 31.75mm = 1.25 (1-1/4) inch
- Outside Diameter:
- 62mm
- Width:
- 35.8mm
Technical
Technical
| d | 1-1/4 inch |
|---|---|
| d | 31.75mm |
| Dsp | 2.4409 inch |
| Dsp | 62mm |
| B1 | 1.4090 inch |
| B1 | 35.8mm |
| B | 0.937 inch |
| C | 0.709 inch |
| Ca | 0.185 inch |
| d2 | 1.472 inch |
| d3 | 1.732 inch |
| S | 0.354 inch |
| W | 5/32 inch |
| Dynamic load Cr | 4350 lbf |
| Dynamic load Cr | 19500 N |
| Static load C0r | 2550 lbf |
| Static load C0r | 11300 N |
| Weight | 0.68 lbs |
