SKU: GRAE25-NPP-B-MB

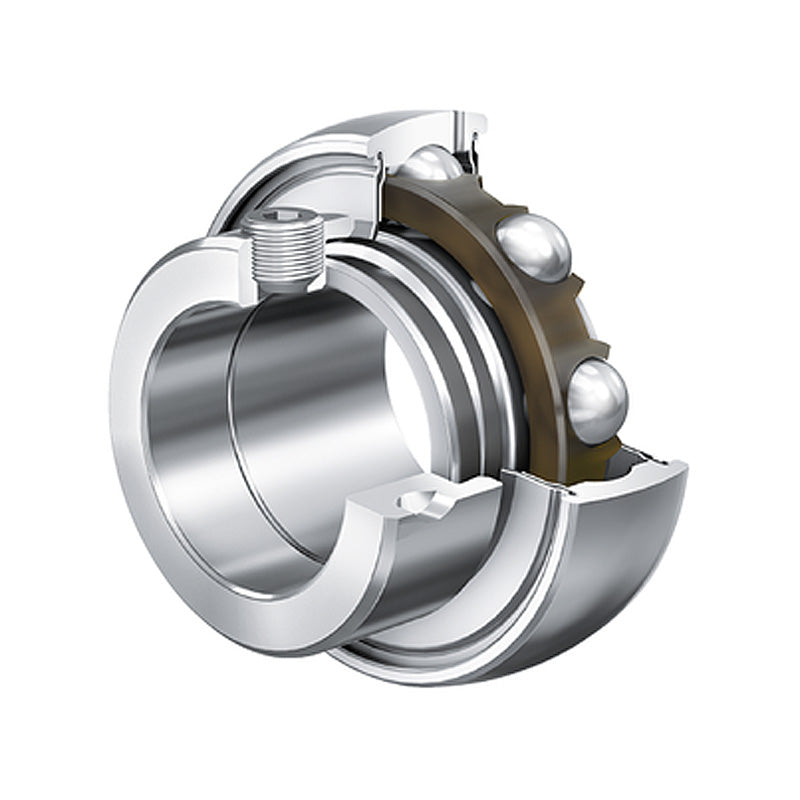

Major Brand GRAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
Major Brand GRAE25XLNPPB Metric Spherical Outer Bearing Insert with P Seals and Eccentric Collar 25x52x31mm
Regular price
€17,95
ex VAT
Regular price
Sale price
€17,95
ex VAT
In stock
Price Break
3+
€13,14
5+
€12,41
10+
€12,26
15+
€12,11
20+
€11,96
30+
€11,82
40+
€11,08
50+
€10,93
60+
€10,78
75+
€10,63
100+
€10,34
Description
Description
|
GRAE..-NPP-B Series Inserts: Bearing insert with spherical outer race, P seals and eccentric locking collar. These radial insert ball bearings are located on the shaft by means of a locking collar. They are particularly suitable for bearing arrangements with a constant direction of rotation, or under low speed and load, for an alternating direction of rotation. The inner rings and locking collar have a Corrotect® coating and are thus protected against fretting corrosion. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 25mm
- Outside Diameter:
- 52mm
- Width:
- 31mm
Technical
Technical
| d | 25mm |
|---|---|
| Dsp | 52mm |
| B1 | 31mm |
| B | 21.4mm |
| C | 15mm |
| Ca | 3.9mm |
| d2 | 30.5mm |
| d3 max | 37.5mm |
| S | 7.5mm |
| W | 3mm |
| Dynamic load Cr | 14000 N |
| Static load C0r | 7800 N |
| Weight | 0.19 kg |
