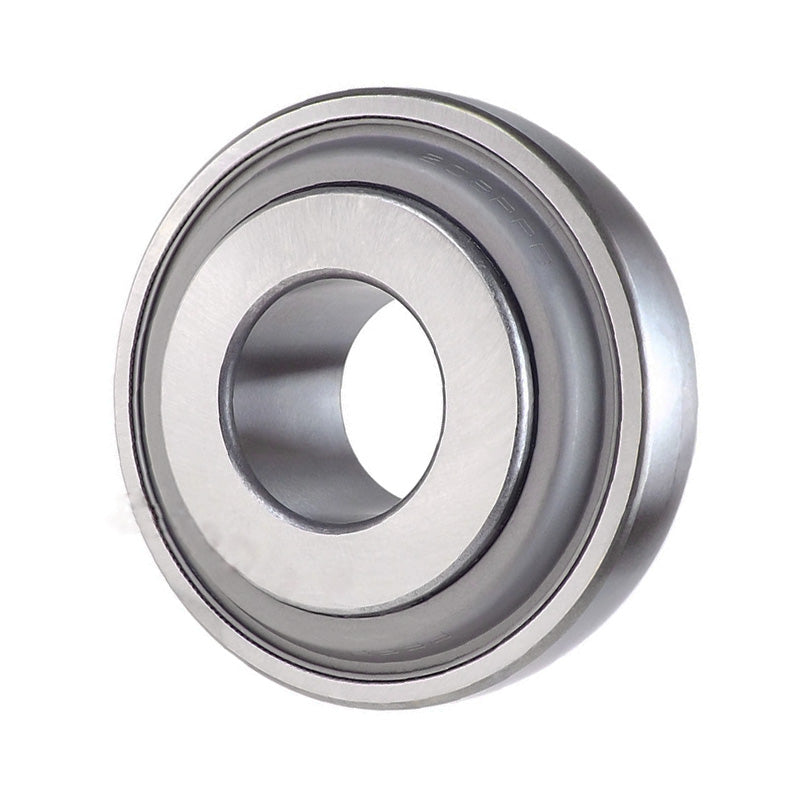

Budget GW211PPB14 Gang Disc Harrow Spherical Outer Round Bore Standard Relubricatable Bearing 2.015x3.937x1.3125 inch - Allow 2-3 Days

Gang Disc
Application conditions:

• Utilizes two to three support bearings on a common shaft with several disks spaced with spools
• Constant and unpredictable movement of the gang shaft can generate severe stress on the internal components of the support bearings
• A great working depth places the bearings directly into the flow of soil and crop residue

• Directly interchangeable industry standard units
• Static misalignment capability accommodates imprecise mounting surfaces

• Dynamic misalignment capability eliminates internal bearing damage
• Shock load protection due to high grade ductile iron housing
• Exclusive patented sealing system eliminates the need for daily relubrication

Seal Type: P, TRL
Typical Application & Speed Limit: Augers with Direct Crop Contact - Basic BRG. Size < 205: 800 RPM , Tillage/Baler Idler Rolls - Basic BRG. Size > 205: 500 RPM
Typical Environment: Direct ground and crop contact, moisture exposure
Contamination Exclusion: Severe

Brand / Quality:

EU Budget - Economy Quality

Inside Diameter:

51.18mm = 2.015 inch

Outside Diameter:

100mm = 3.937 (3-15/16) inch

Width:

33.33mm = 1.312 (1-5/16) inch
