SKU: GX70F-SKF
SKF GX70F Maintenance Free Thrust Spherical Plain Bearing 70x160x50mm
SKF GX70F Maintenance Free Thrust Spherical Plain Bearing 70x160x50mm
Regular price
€870,95
ex VAT
Regular price
Sale price
€870,95
ex VAT
Equivalent to: GE70AW GX70T
In stock
Price Break
10+
€663,09
19+
€625,83
29+
€618,38
39+
€610,93
49+
€603,48
74+
€596,03
99+
€558,78
199+
€551,33
249+
€543,88
499+
€536,43
999+
€521,53
Description
Description

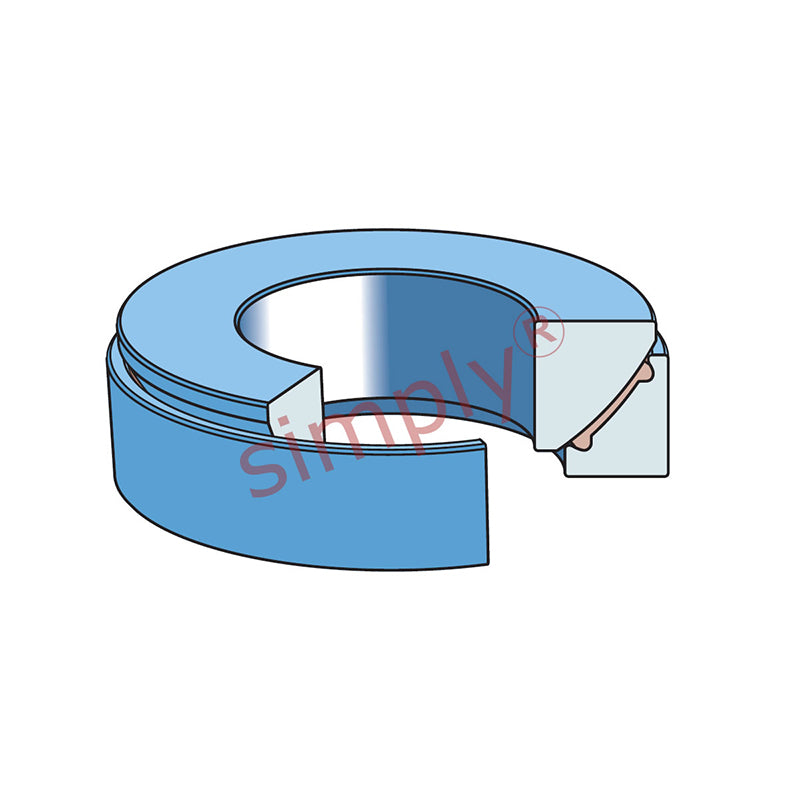

SKF Spherical Plain Bearings: Maintenance-free spherical plain thrust bearings with sliding contact surface combination, steel/ PTFE composite. |
Equivalent: GE70AW GX70T
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 70mm
- Outside Diameter:
- 160mm
- Width:
- 50mm
Technical
Technical

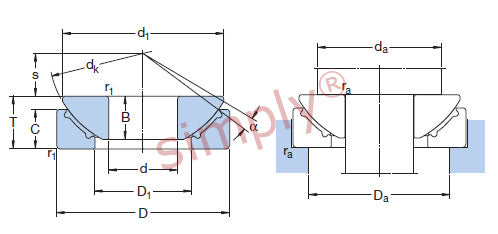

| d | 70mm |
|---|---|
| D | 160mm |
| T | 50mm |
| Angle | 5 degree |
| Dynamic load | 475 kN |
| Static load | 750 kN |
| dk | 176mm |
| d1 | 153mm |
| D1 | 94.5mm |
| B | 42mm |
| C | 36.5mm |
| r1 min | 1mm |
| s | 35mm |
| da min | 121mm |
| Da max | 125mm |
| ra max | 1mm |
| Weight | 5.4 kg |
