SKU: GY1200-KRR-B-AS2/V-INA

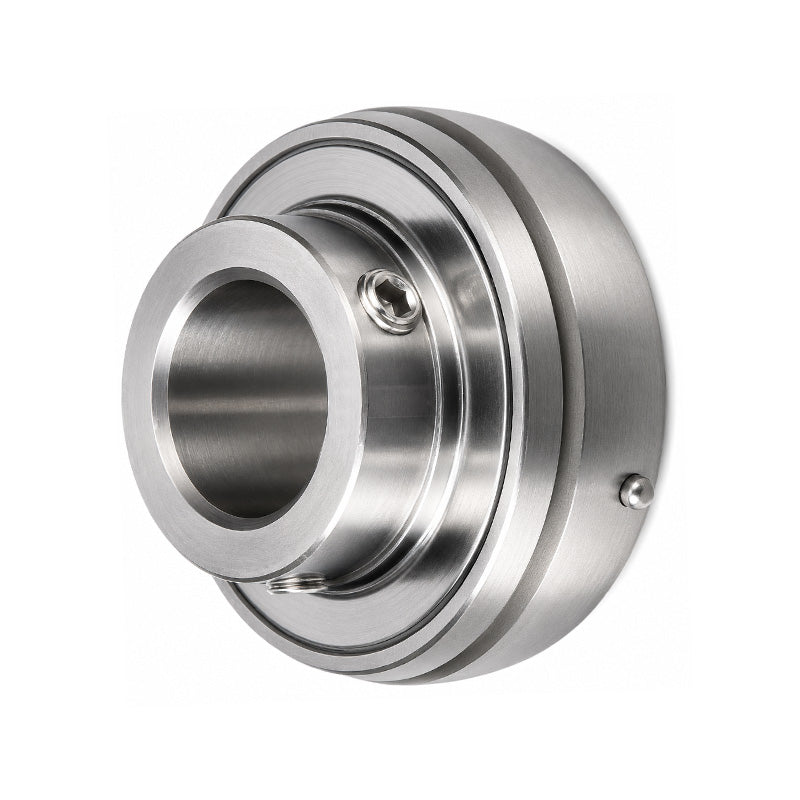

INA GY1200KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 50.8x100x55.6mm
INA GY1200KRRBAS2/V Imperial Spherical Outer Bearing Insert with R Seals and Grub Screws 50.8x100x55.6mm
Regular price
€74,95
ex VAT
Regular price
Sale price
€74,95
ex VAT
In stock
Price Break
3+
€56,62
5+
€53,44
10+
€52,80
15+
€52,17
20+
€51,53
30+
€50,90
40+
€47,72
50+
€47,08
60+
€46,44
75+
€45,81
100+
€44,53
Description
Description
|
INA GY..KRR-B Series Inserts: Bearing insert with spherical outer race, R seals and grub screws. In these radial insert ball bearings, the inner ring is located on the shaft by means of two grub screws offset by 120 degrees. This location method is suitable for bearing arrangements with a constant direction of rotation or, under low speed and load, for an alternating direction of rotation. The grub screws are self-retaining and have a fine pitch thread with cup point for secure location of the bearings. The outer ring has two lubrication holes as standard. Operating temperature range: -20 deg C to +120 deg C. Benefits: Can be re-lubricated, compensation of misalignment. |
- Brand / Quality:
- INA - High Quality
- Inside Diameter:
- 50.8mm = 2 inch
- Outside Diameter:
- 100mm
- Width:
- 55.6mm
Technical
Technical
| d | 2 inch |
|---|---|
| d | 50.8mm |
| Dsp | 3.9370 inch |
| Dsp | 100mm |
| B | 2.1890 inch |
| B | 55.6mm |
| A | 0.354 inch |
| C | 0.984 inch |
| C2 | 1.142 inch |
| Ca | 0.276 inch |
| D1 | 3.382 inch |
| d1 | 2.748 inch |
| S | 0.874 inch |
| W | 5/32 inch |
| Dynamic load Cr | 9800 lbf |
| Dynamic load Cr | 43500 N |
| Static load C0r | 6500 lbf |
| Static load C0r | 29000 N |
| Weight | 2.42 lbs |
