SKU: H212-SKF

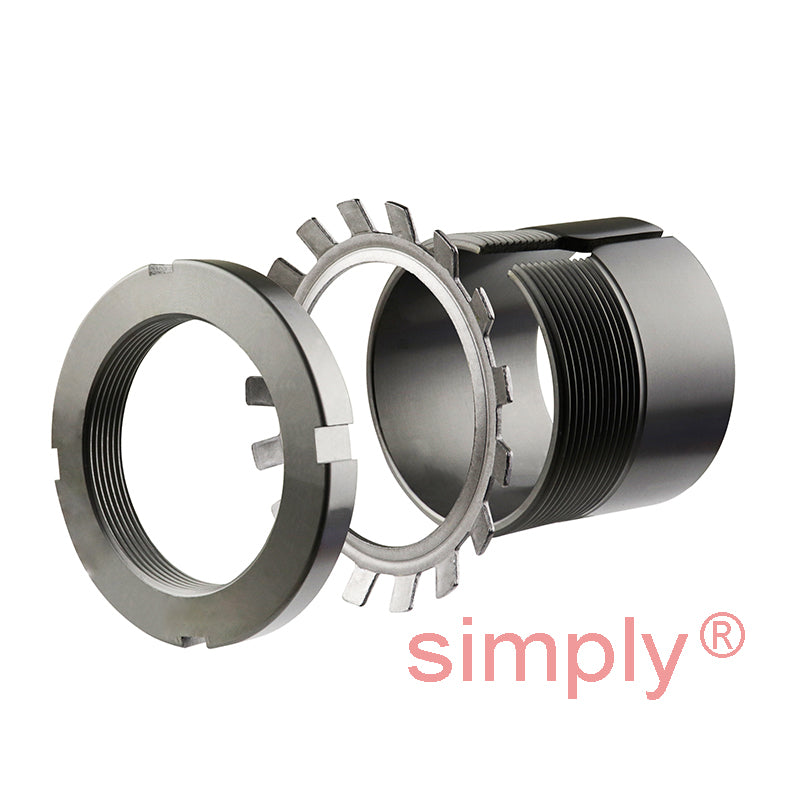

SKF H212 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
SKF H212 Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
Regular price
€35,95
ex VAT
Regular price
Sale price
€35,95
ex VAT
In stock
Price Break
2+
€27,15
5+
€25,63
10+
€25,32
20+
€25,02
49+
€24,71
74+
€24,41
99+
€22,88
199+
€22,58
249+
€22,27
499+
€21,96
999+
€21,35
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 55mm
- Outside Diameter:
- 80mm
- Width:
- 38mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 55mm |
| d | 60mm |
| d3 | 80mm |
| B1 | 38mm |
| B2 | 12.5mm |
| G | Thread 60x2mm |
| Weight | 0.31 kg |
| --- | Assembly Parts |
| Sleeve | H212 |
| Nut | KM12 |
| Washer | MB12 |
| Hydraulic nut | HMV12E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1212K+taper+self+open>1212K</a> |
