SKU: H213-SKF

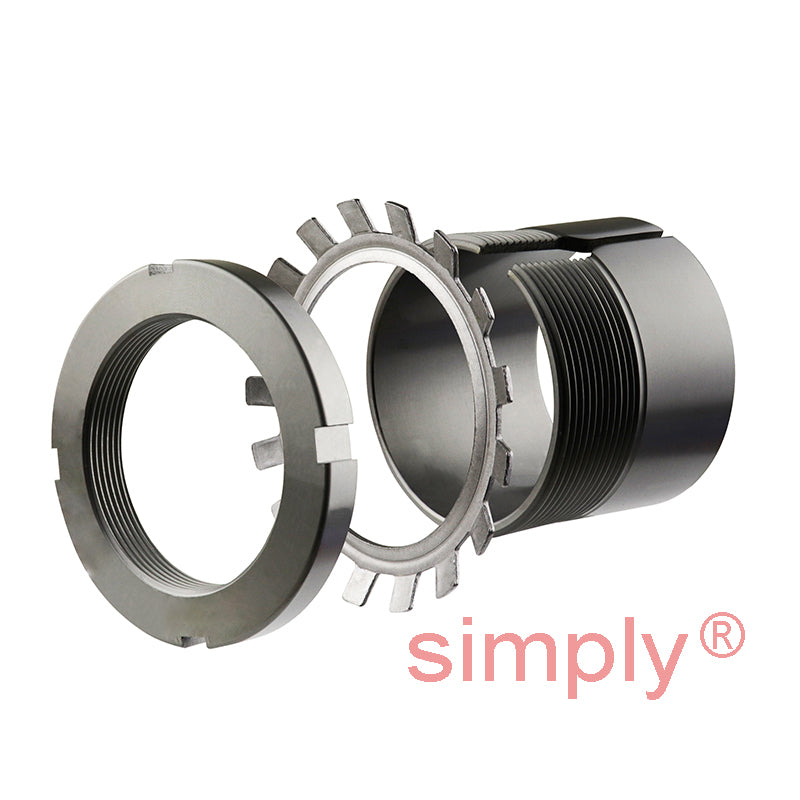

SKF H213 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
SKF H213 Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
€37,95
ex VAT
Regular price
Sale price
€37,95
ex VAT
In stock
Price Break
2+
€28,38
5+
€26,78
10+
€26,46
20+
€26,14
49+
€25,82
74+
€25,51
99+
€23,91
199+
€23,59
249+
€23,27
499+
€22,96
999+
€22,32
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 40mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 40mm |
| B2 | 13.5mm |
| G | Thread 65x2mm |
| Weight | 0.36 kg |
| --- | Assembly Parts |
| Sleeve | H213 |
| Nut | KM13 |
| Washer | MB13 |
| Hydraulic nut | HMV13E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1213K+taper+self+open>1213K</a> |
