• SKF H218 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
1 1

SKU: H218-SKF

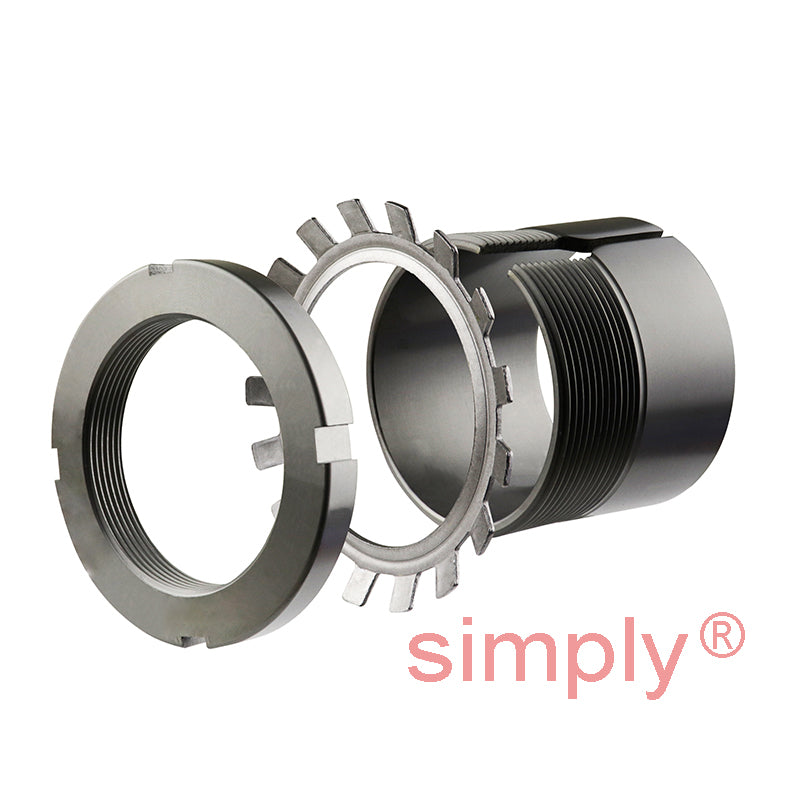

SKF H218 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft

SKF H218 Adaptor Sleeve with Lock Nut and Locking Device for 80mm Shaft
€98,95 ex VAT
€98,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €75,11
5+ €70,89
10+ €70,04
20+ €69,20
49+ €68,35
74+ €67,51
99+ €63,29
199+ €62,45
249+ €61,60
499+ €60,76
999+ €59,07
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
80mm
Outside Diameter:
120mm
Width:
52mm
Technical
--- Dimensions
d1 80mm
d 90mm
d3 120mm
B1 52mm
B2 18mm
G Thread 90x2mm
Weight 1.1 kg
--- Assembly Parts
Sleeve H218
Nut KM18
Washer MB18
Hydraulic nut HMV18E
--- Matching Self Aligning Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1218K+taper+self+open>1218K</a>
