SKU: H2308-SKF

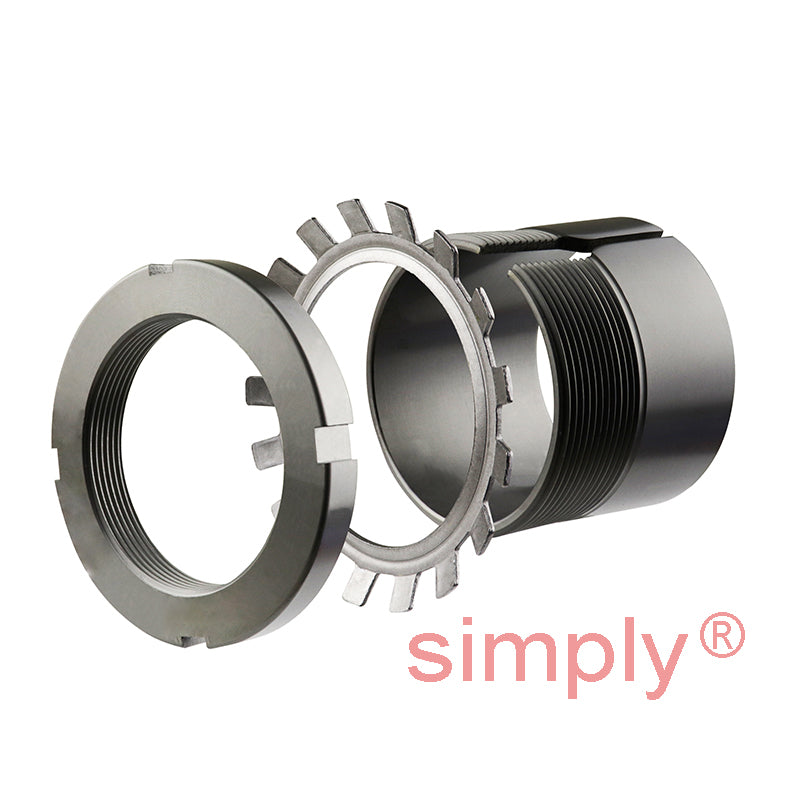

SKF H2308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
SKF H2308 Adaptor Sleeve with Lock Nut and Locking Device for 35mm Shaft
Regular price
€34,95
ex VAT
Regular price
Sale price
€34,95
ex VAT
In stock
Price Break
2+
€26,15
5+
€24,68
10+
€24,39
20+
€24,09
49+
€23,80
74+
€23,50
99+
€22,03
199+
€21,74
249+
€21,45
499+
€21,15
999+
€20,57
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 35mm
- Outside Diameter:
- 58mm
- Width:
- 46mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 35mm |
| d | 40mm |
| d3 | 58mm |
| B1 | 46mm |
| B2 | 10mm |
| G | Thread 40x1.5mm |
| Weight | 0.22 kg |
| --- | Assembly Parts |
| Sleeve | H2308 |
| Nut | KM8 |
| Washer | MB8 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2308K+taper+self+open>2308K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22308K+taper>22308K</a> |
