SKU: H2309-SKF

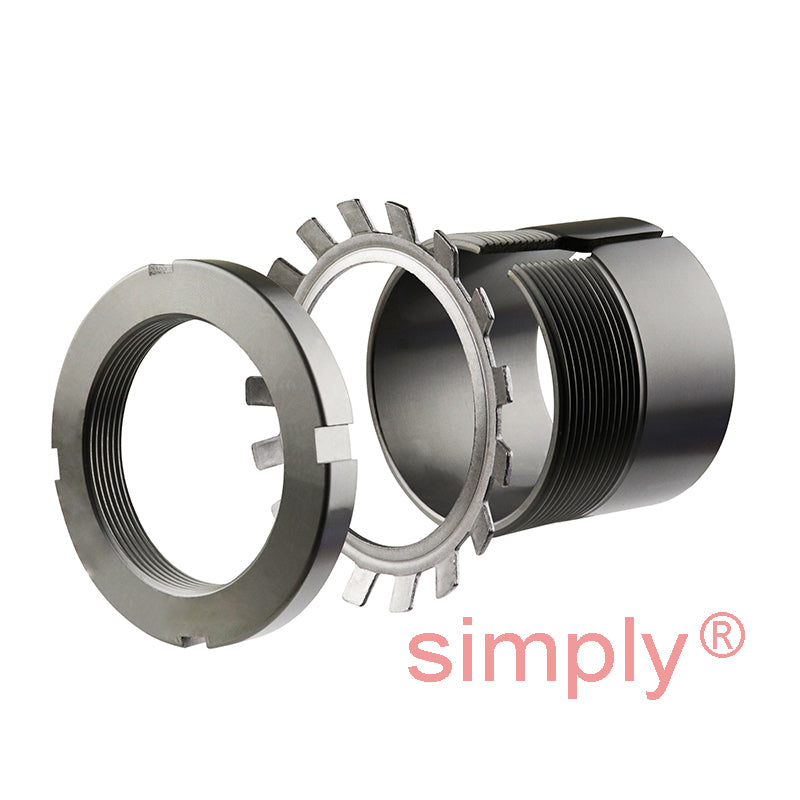

SKF H2309 Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
SKF H2309 Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
Regular price
€16,95
ex VAT
Regular price
Sale price
€16,95
ex VAT
In stock
Price Break
2+
€12,81
5+
€12,09
10+
€11,94
20+
€11,80
49+
€11,66
74+
€11,51
99+
€10,79
199+
€10,65
249+
€10,50
499+
€10,36
999+
€10,07
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 65mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 40mm |
| d | 45mm |
| d3 | 65mm |
| B1 | 50mm |
| B2 | 11mm |
| G | Thread 45x1.5mm |
| Weight | 0.27 kg |
| --- | Assembly Parts |
| Sleeve | H2309 |
| Nut | KM9 |
| Washer | MB9 |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2309K+taper+self+open>2309K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22309K+taper>22309K</a> |
