SKU: H2319-SKF

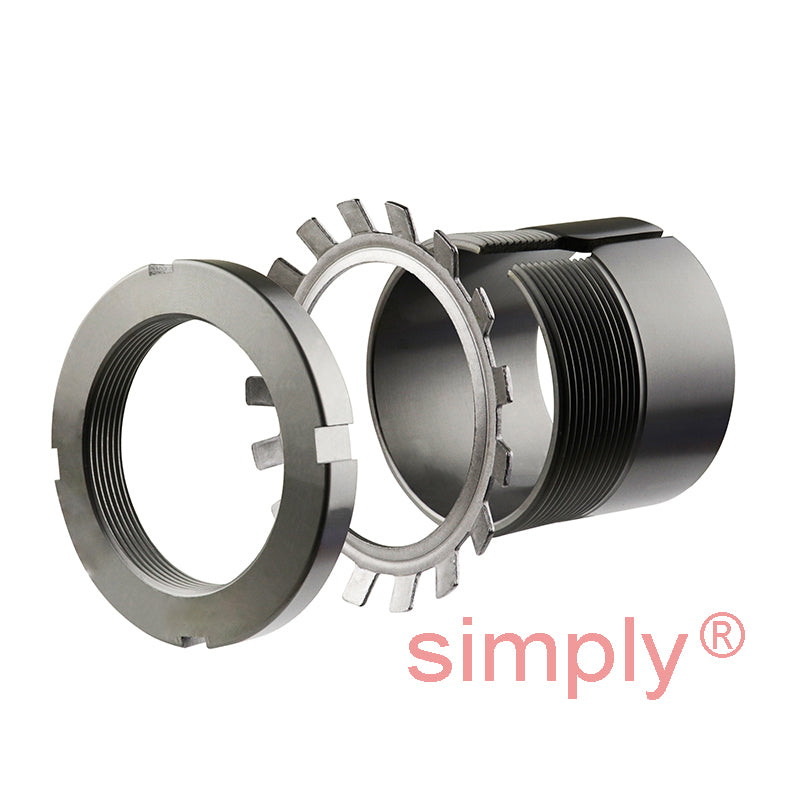

SKF H2319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
SKF H2319 Adaptor Sleeve with Lock Nut and Locking Device for 85mm Shaft
Regular price
€140,95
ex VAT
Regular price
Sale price
€140,95
ex VAT
In stock
Price Break
2+
€106,64
5+
€100,65
10+
€99,45
20+
€98,26
49+
€97,06
74+
€95,86
99+
€89,87
199+
€88,67
249+
€87,47
499+
€86,27
999+
€83,88
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 85mm
- Outside Diameter:
- 125mm
- Width:
- 90mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 85mm |
| d | 95mm |
| d3 | 125mm |
| B1 | 90mm |
| B2 | 19mm |
| G | Thread 95x2mm |
| Weight | 1.8 kg |
| --- | Assembly Parts |
| Sleeve | H2319 |
| Nut | KM19 |
| Washer | MB19 |
| Hydraulic nut | HMV19E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2319K+taper+self+open>2319K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22319K+taper>22319K</a> |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2319K+taper>C2319K</a> |
