SKU: H3028-FAG

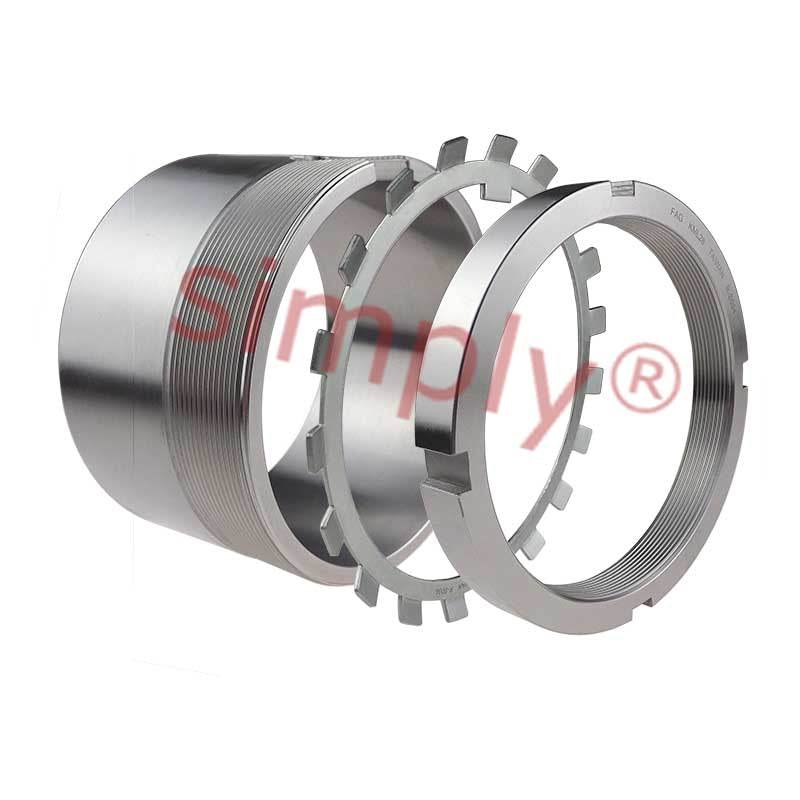

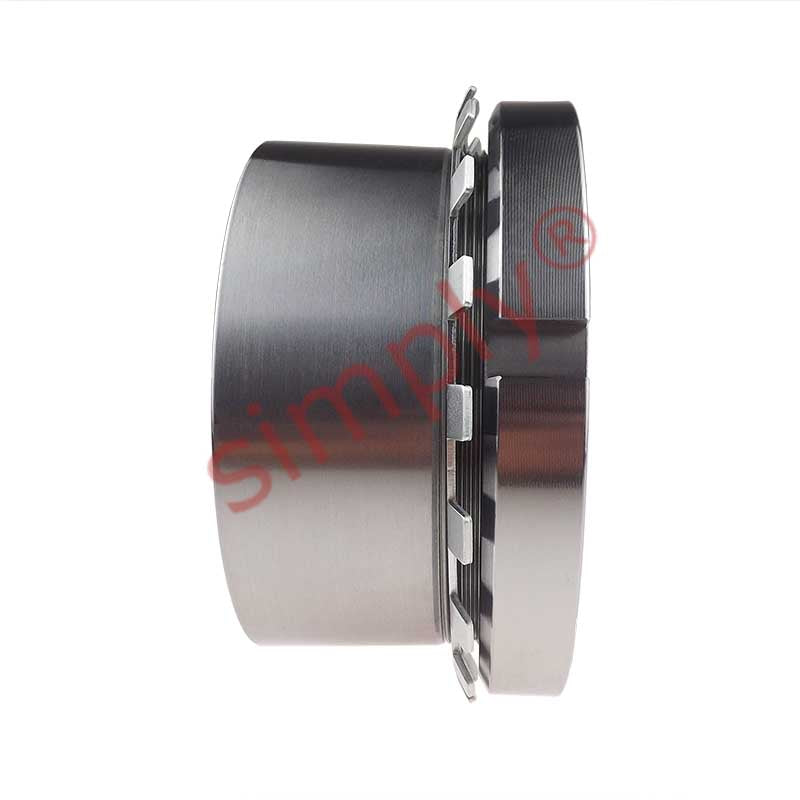

FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
FAG H3028 Adaptor Sleeve with Lock Nut and Locking Device for 125mm Shaft
Regular price
€243,41
ex VAT
Regular price
Sale price
€243,41
ex VAT
In stock
Price Break
10+
€216,63
19+
€204,46
29+
€202,03
39+
€199,60
49+
€197,16
74+
€194,73
99+
€182,56
199+
€180,12
249+
€177,69
499+
€175,26
999+
€170,39
Couldn't load pickup availability
Description
Description
|
Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- FAG - High Quality
- Inside Diameter:
- 125mm
- Outside Diameter:
- 165mm
- Width:
- 82mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 125mm |
| d | 165mm |
| d3 | 165mm |
| B1 | 82mm |
| B2 | 24mm |
| G | Thread 140x2mm |
| Weight | 3.05 kg |
| --- | Assembly Parts |
| Sleeve | H2028 |
| Nut | KML28 |
| Washer | MBL28 |
