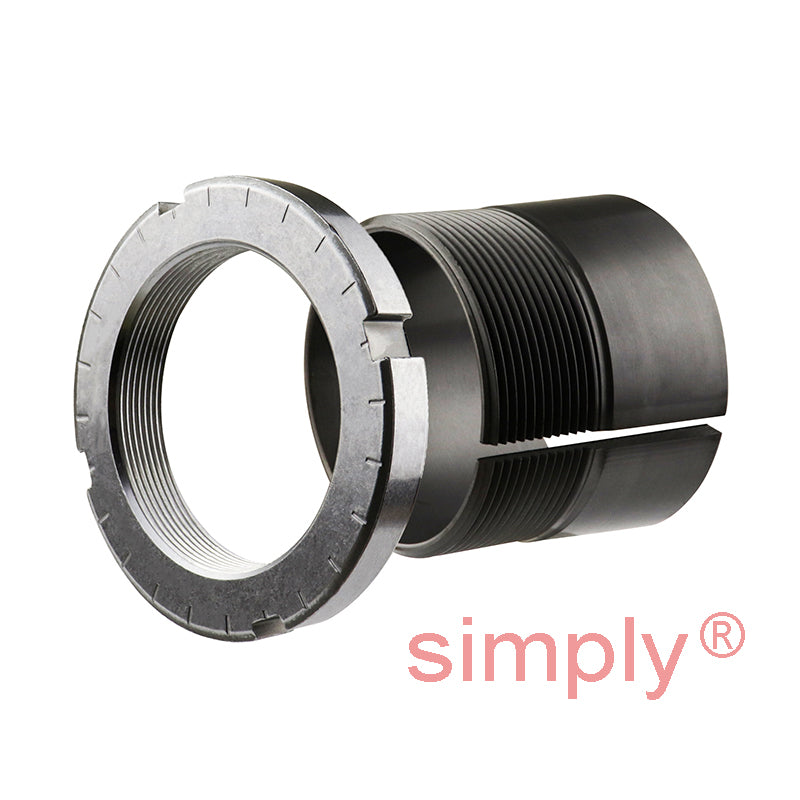

SKF H309E Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
SKF H309E Adaptor Sleeve with Lock Nut and Locking Device for 40mm Shaft
Regular price
€36,95
ex VAT
Regular price
Sale price
€36,95
ex VAT
In stock
Price Break
2+
€27,71
5+
€26,15
10+
€25,84
20+
€25,53
49+
€25,22
74+
€24,91
99+
€23,35
199+
€23,04
249+
€22,73
499+
€22,42
999+
€21,79
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 40mm
- Outside Diameter:
- 65mm
- Width:
- 39mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 40mm |
| d | 45mm |
| d3 | 65mm |
| B1 | 39mm |
| B2 | 13mm |
| G | Thread 45x1.5mm |
| Weight | 0.24 kg |
| --- | Assembly Parts |
| Sleeve | H309E |
| Nut | KMFE9 |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209KTN9+taper>C2209KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2209K+taper>C2209K</a> |
