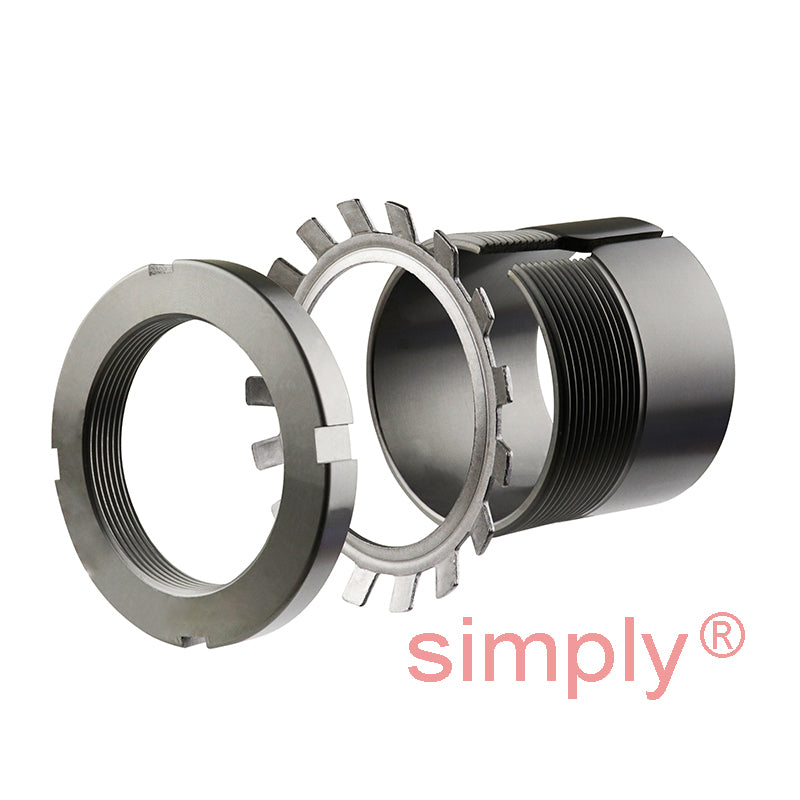

SKF H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
SKF H310 Adaptor Sleeve with Lock Nut and Locking Device for 45mm Shaft
Regular price
€27,95
ex VAT
Regular price
Sale price
€27,95
ex VAT
In stock
Price Break
2+
€21,03
5+
€19,85
10+
€19,61
20+
€19,37
49+
€19,14
74+
€18,90
99+
€17,72
199+
€17,48
249+
€17,25
499+
€17,01
999+
€16,54
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 45mm
- Outside Diameter:
- 70mm
- Width:
- 42mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 45mm |
| d | 50mm |
| d3 | 70mm |
| B1 | 42mm |
| B2 | 12mm |
| G | Thread 50x1.5mm |
| Weight | 0.27 kg |
| --- | Assembly Parts |
| Sleeve | H310 |
| Nut | KM10 |
| Washer | MB10 |
| Hydraulic nut | HMV10E |
| --- | Matching Self Aligning Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2210K+taper+self+open>2210K</a> |
| --- | Matching Spherical Roller Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=1310K+taper+self+open>1310K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22210K+taper>22210K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=21310K+taper>21310K</a> |
