SKU: H311C-SKF

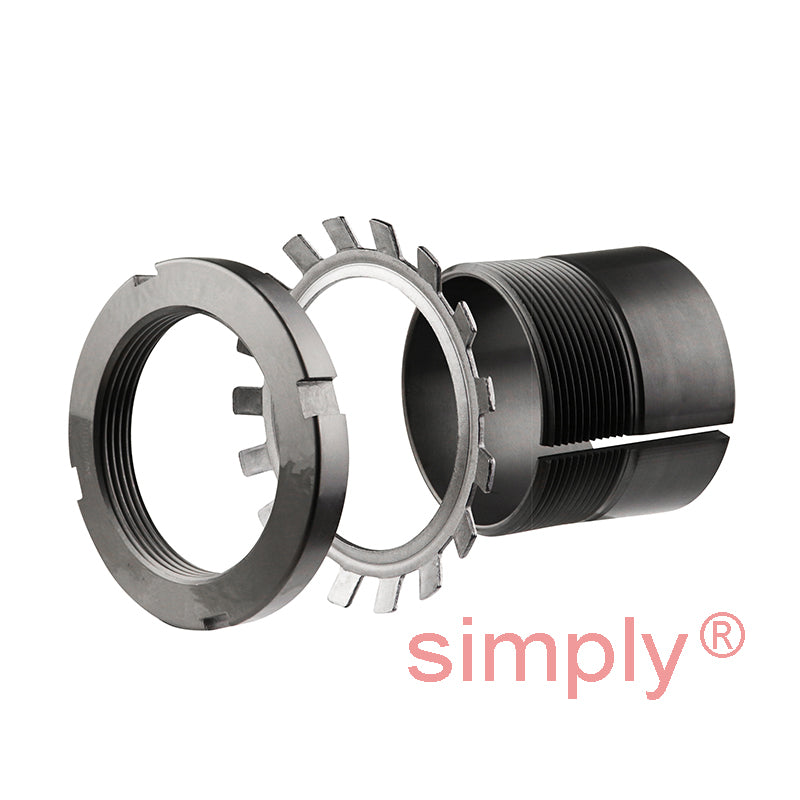

SKF H311C Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft

Name: SKF H311C Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
Brand: SKF
SKU: H311C-SKF
Price: 42.95 EUR
Availability: InStock

€42,95 ex VAT

Sale Sold out

In stock

Price Break

2+ €32,39

5+ €30,57

10+ €30,21

20+ €29,84

49+ €29,48

74+ €29,12

99+ €27,30

199+ €26,93

249+ €26,57

499+ €26,21

999+ €25,48

Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More

Description

SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount

Brand / Quality:: SKF - High Quality
Inside Diameter:: 50mm
Outside Diameter:: 75mm
Width:: 45mm

Technical

---	Dimensions
d1	50mm
d	55mm
d3	75mm
B1	45mm
B2	13mm
G	Thread 55x2mm
Weight	0.32 kg
---	Assembly Parts
Sleeve	H311C
Nut	KM11
Washer	MB11C
Hydraulic nut	HMV11E
Bearing No.	<a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=2211K-2RS+taper>2211K-2RS</a>
