SKU: H311E-SKF

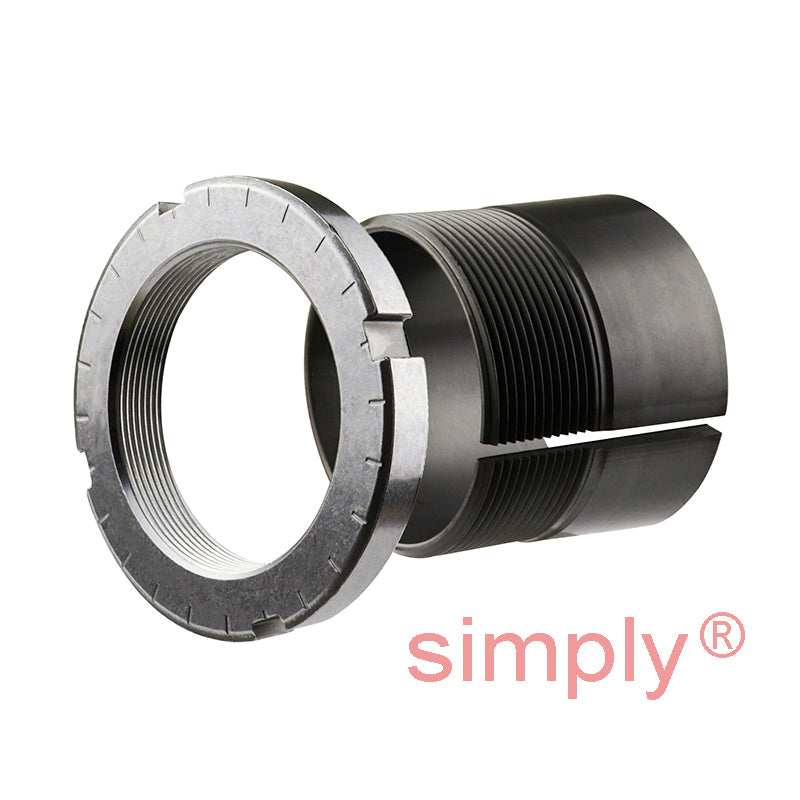

SKF H311E Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
SKF H311E Adaptor Sleeve with Lock Nut and Locking Device for 50mm Shaft
Regular price
€38,95
ex VAT
Regular price
Sale price
€38,95
ex VAT
In stock
Price Break
2+
€29,60
5+
€27,94
10+
€27,61
20+
€27,28
49+
€26,94
74+
€26,61
99+
€24,95
199+
€24,61
249+
€24,28
499+
€23,95
999+
€23,28
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 50mm
- Outside Diameter:
- 75mm
- Width:
- 45mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 50mm |
| d | 55mm |
| d3 | 75mm |
| B1 | 45mm |
| B2 | 14mm |
| G | Thread 55x2mm |
| Weight | 0.34 kg |
| --- | Assembly Parts |
| Sleeve | H311E |
| Nut | KMFE11 |
| Hydraulic nut | HMV11E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2211KTN9+taper>C2211KTN9</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2211K+taper>C2211K</a> |
