• SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
1 1

SKU: H312E-SKF

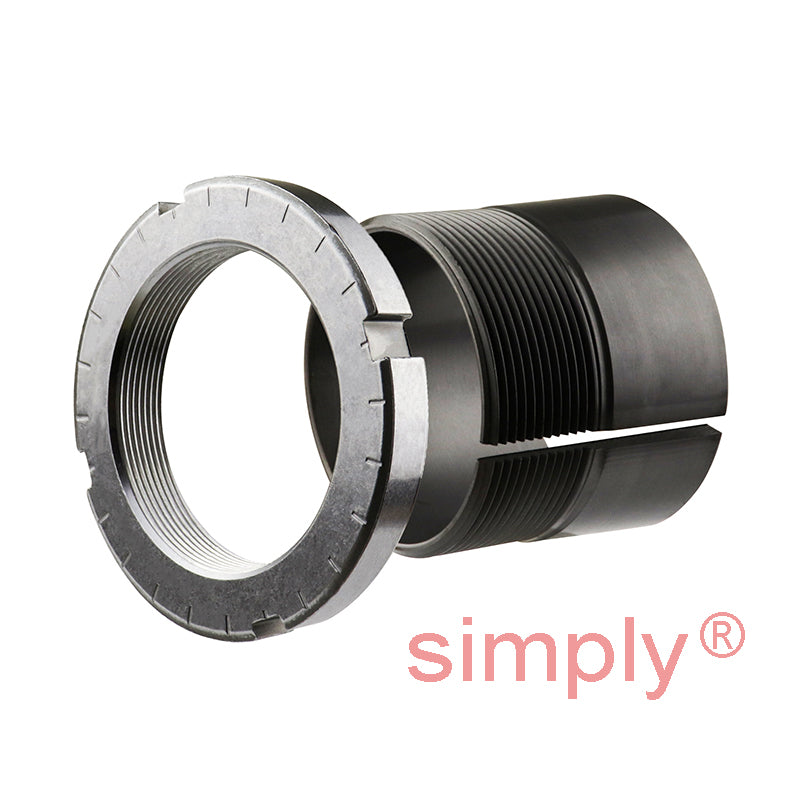

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft

SKF H312E Adaptor Sleeve with Lock Nut and Locking Device for 55mm Shaft
€48,95 ex VAT
€48,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €36,66
5+ €34,60
10+ €34,19
20+ €33,78
49+ €33,37
74+ €32,96
99+ €30,90
199+ €30,49
249+ €30,07
499+ €29,66
999+ €28,84
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
55mm
Outside Diameter:
80mm
Width:
47mm
Technical
--- Dimensions
d1 55mm
d 60mm
d3 80mm
B1 47mm
B2 14mm
G Thread 60x2mm
Weight 0.4 kg
--- Assembly Parts
Sleeve H312E
Nut KMFE12
Hydraulic nut HMV12E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2212KTN9+taper>C2212KTN9</a>
