SKU: H3136-SKF

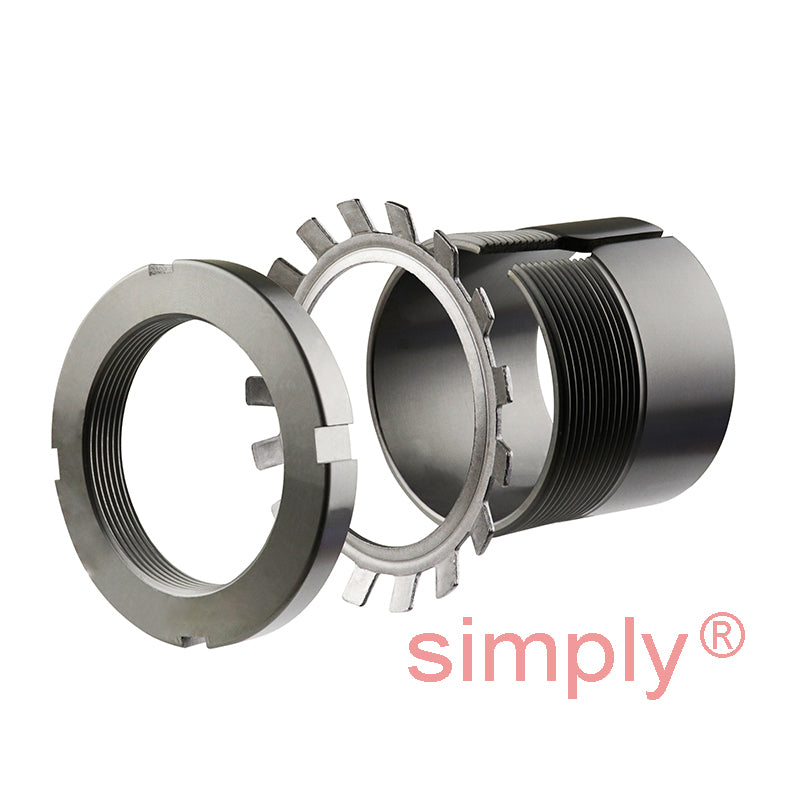

SKF H3136 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
SKF H3136 Adaptor Sleeve with Lock Nut and Locking Device for 160mm Shaft
Regular price
€487,19
ex VAT
Regular price
Sale price
€487,19
ex VAT
In stock
Price Break
10+
€433,60
19+
€409,24
29+
€404,37
39+
€399,50
49+
€394,62
74+
€389,75
99+
€365,39
199+
€360,52
249+
€355,65
499+
€350,78
999+
€341,03
Couldn't load pickup availability
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 160mm
- Outside Diameter:
- 230mm
- Width:
- 131mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 160mm |
| d | 180mm |
| d3 | 230mm |
| B1 | 131mm |
| B2 | 29.5mm |
| G | Thread 180x3mm |
| Weight | 9.15 kg |
| --- | Assembly Parts |
| Sleeve | H3136 |
| Nut | KM36 |
| Washer | MB36 |
| Hydraulic nut | HMV36E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=23136K+taper>23136K</a> |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22236K+taper>22236K</a> |
