SKU: H313C-SKF

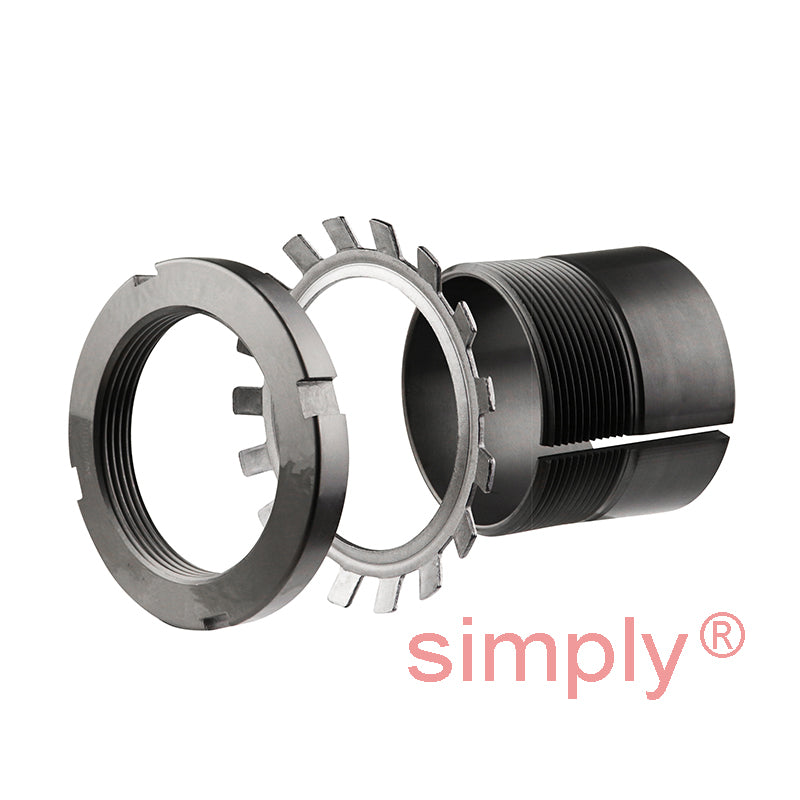

SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
SKF H313C Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
€105,95
ex VAT
Regular price
Sale price
€105,95
ex VAT
In stock
Price Break
2+
€80,33
5+
€75,82
10+
€74,92
20+
€74,01
49+
€73,11
74+
€72,21
99+
€67,70
199+
€66,79
249+
€65,89
499+
€64,99
999+
€63,18
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 85mm
- Width:
- 50mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 65mm |
| d3 | 85mm |
| B1 | 50mm |
| B2 | 14.5mm |
| G | Thread 65x2mm |
| Weight | 0.42 kg |
| --- | Assembly Parts |
| Sleeve | H313C |
| Nut | KM13 |
| Washer | MB13C |
| Hydraulic nut | HMV13E |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=22213K-2RS+taper>22213K-2RS</a> |
