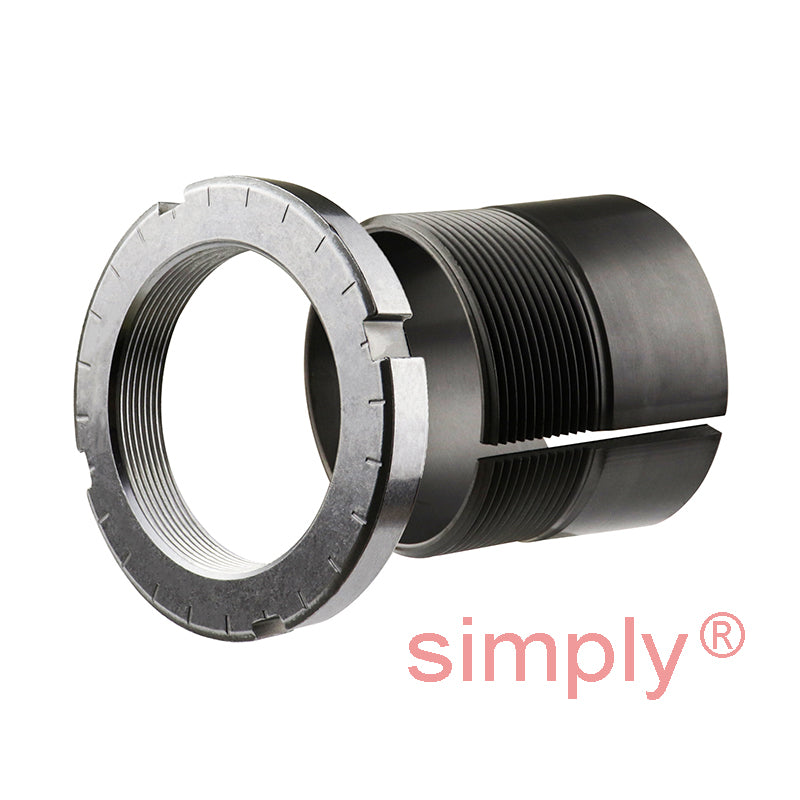

• SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
1 1

SKU: H313E-SKF

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft

SKF H313E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
€65,95 ex VAT
€65,95 ex VAT
Sale Sold out

In stock

Price Break
2+ €49,86
5+ €47,06
10+ €46,50
20+ €45,94
49+ €45,38
74+ €44,82
99+ €42,02
199+ €41,46
249+ €40,90
499+ €40,34
999+ €39,22
Request Quotation

Return policy

90-Days Free Returns

Learn More

Low cost shipping

International Delivery

Learn More
Description
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position
Benefits: Re-useable, adjustable, positive location, easy to dismount
Brand / Quality:
SKF - High Quality
Inside Diameter:
60mm
Outside Diameter:
85mm
Width:
50mm
Technical
--- Dimensions
d1 60mm
d 65mm
d3 85mm
B1 50mm
B2 15mm
G Thread 65x2mm
Weight 0.43 kg
--- Assembly Parts
Sleeve H313E
Nut KMFE13
Hydraulic nut HMV13E
--- Matching Carb Toroidal Bearings
Bearing No. <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2213KTN9+taper>C2213KTN9</a>
