SKU: H314E-SKF

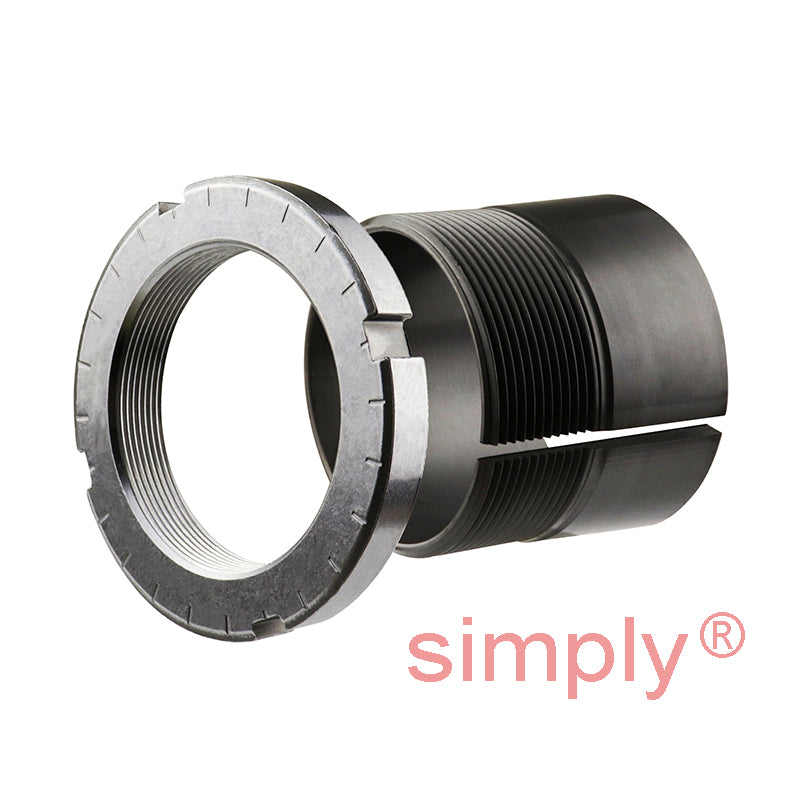

SKF H314E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
SKF H314E Adaptor Sleeve with Lock Nut and Locking Device for 60mm Shaft
Regular price
€71,95
ex VAT
Regular price
Sale price
€71,95
ex VAT
In stock
Price Break
2+
€54,70
5+
€51,63
10+
€51,01
20+
€50,40
49+
€49,78
74+
€49,17
99+
€46,09
199+
€45,48
249+
€44,87
499+
€44,25
999+
€43,02
Share this product
Description
Description
|
SKF Adaptor Sleeves: Are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seating. They can be used on plain shafts allowing the bearing to be positioned as required and locked into place or on stepped shafts with a seating ring to set the bearing off a shoulder before locking it into position Benefits: Re-useable, adjustable, positive location, easy to dismount |
- Brand / Quality:
- SKF - High Quality
- Inside Diameter:
- 60mm
- Outside Diameter:
- 92mm
- Width:
- 52mm
Technical
Technical
| --- | Dimensions |
|---|---|
| d1 | 60mm |
| d | 70mm |
| d3 | 92mm |
| B1 | 52mm |
| B2 | 15mm |
| G | Thread 70x2mm |
| Weight | 0.67 kg |
| --- | Assembly Parts |
| Sleeve | H314E |
| Nut | KMFE14 |
| Hydraulic nut | HMV14E |
| --- | Matching Carb Toroidal Bearings |
| Bearing No. | <a href=advanced_search_result.php?sort=2a&search_in_description=1&keywords=C2214KTN9+taper>C2214KTN9</a> |
