SKU: HFL.0822.EU

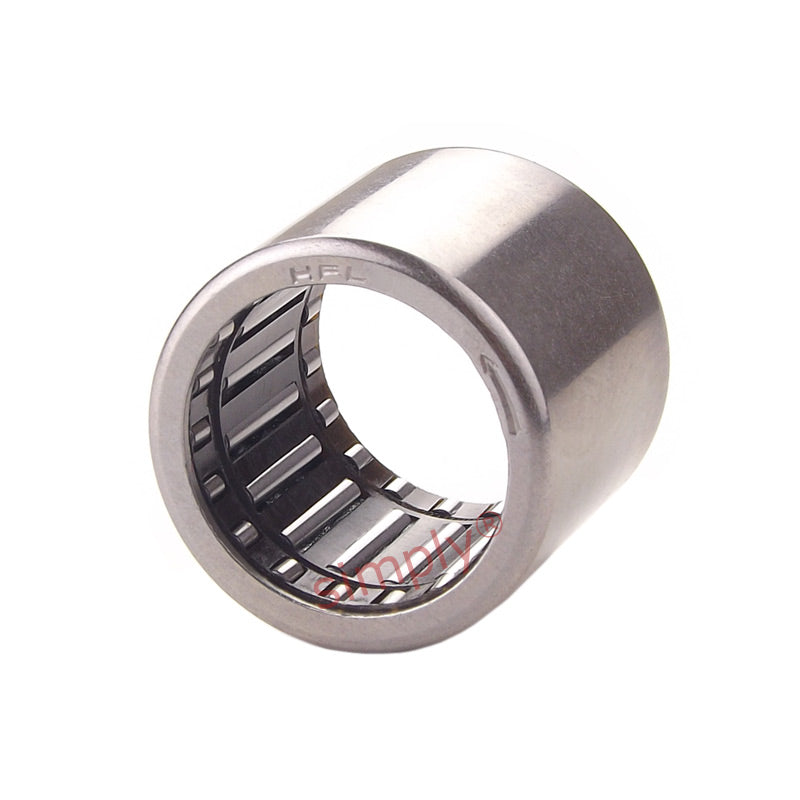

HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
HFL0822 Needle Roller Clutch Type One Way Bearing 8x12x22mm
Regular price
€12,95
ex VAT
Regular price
Sale price
€12,95
ex VAT
In stock
Price Break
10+
€9,52
19+
€8,98
29+
€8,88
39+
€8,77
49+
€8,66
74+
€8,55
99+
€8,02
199+
€7,91
249+
€7,81
499+
€7,70
999+
€7,49
Share this product
Description
Description
|
Budget Metric Needle Roller Clutch Bearings: Designed to transmit torques in one direction and freewheel in the opposite direction. One-way clutches consist of a thin-walled, drawn outer ring with a series of ramps on the inside diameter, plastic cages, springs and needle rollers. They are supplied pre-greased with lithium soap grease. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 8mm
- Outside Diameter:
- 12mm
- Width:
- 22mm
Technical
Technical
| Fw | 8mm |
|---|---|
| D | 12mm |
| C | 22mm |
| Tolerance | 0.3mm |
| r min | 0.3 |
| Torque | 3.15 N m |
| Speed (rotating shaft) | 17000 rpm |
| Speed (rotating outer ring) | 12000 rpm |
| Weight | 7 g |
