SKU: HK1616-MB

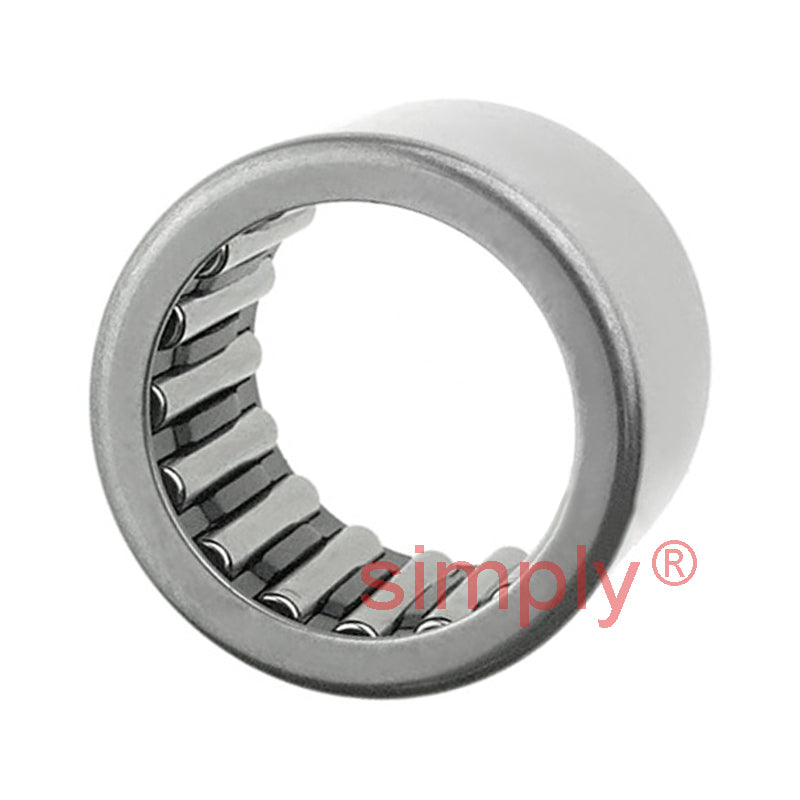

Major Brand HK1616 Drawn Cup Type Needle Roller Bearing with Two Open Ends 16x22x16mm
Major Brand HK1616 Drawn Cup Type Needle Roller Bearing with Two Open Ends 16x22x16mm
Regular price
€6,59
ex VAT
Regular price
Sale price
€6,59
ex VAT
Equivalent to: TLA1616Z RHNA162216
In stock
Price Break
10+
€5,87
19+
€5,54
29+
€5,47
39+
€5,40
49+
€5,34
74+
€5,27
99+
€4,94
199+
€4,88
249+
€4,81
499+
€4,74
999+
€4,61
Couldn't load pickup availability
Description
Description
|
HK Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
Equivalent: TLA1616Z RHNA162216
- Brand / Quality:
- Major Brand - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw | 16mm |
|---|---|
| D | 22mm |
| C | 16mm |
| Dynamic load | 10500 N |
| Static load | 15600 N |
| Fatigue load limit Pu | 1800 N |
| Speed in grease | 10000 rpm |
| Speed in oil | 16000 rpm |
| r1r2 min | 0.8mm |
| Da max | 17mm |
| ra max | 0.8mm |
| Inner ring | IR12x16x16 |
| Seal | G/SD16x22x3 |
| Weight | 16 g |
