SKU: HK1616LL/3AS-NTN

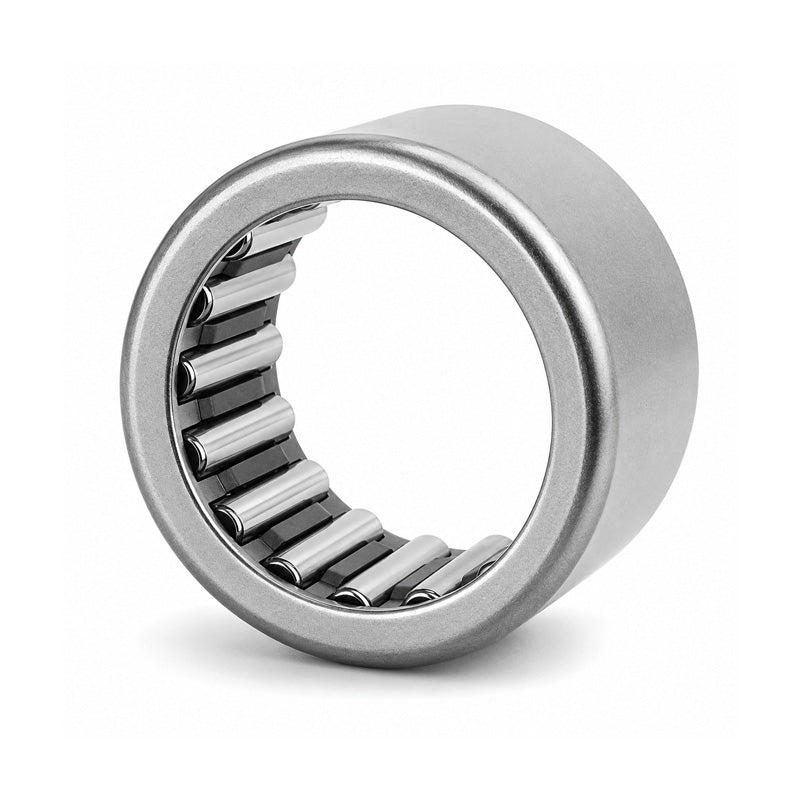

NTN HK1616LL/3AS Drawn Cup Needle Roller Bearing with Open End 16x22x16mm
NTN HK1616LL/3AS Drawn Cup Needle Roller Bearing with Open End 16x22x16mm
Regular price
€7,95
ex VAT
Regular price
Sale price
€7,95
ex VAT
In stock
Price Break
3+
€5,64
4+
€5,33
9+
€5,26
19+
€5,20
49+
€5,14
99+
€5,07
499+
€4,76
999+
€4,69
1999+
€4,63
2999+
€4,56
4999+
€4,44
Share this product
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 16mm
- Outside Diameter:
- 22mm
- Width:
- 16mm
Technical
Technical
| Fw - Inside diameter | 16mm |
|---|---|
| D - Outside diameter | 22mm |
| C2 - Width of drawn cup LL | 16mm |
| C3 - Max drawn cup closed end thickness LL | 2.7mm |
| Lubrication hole on outer ring? | No |
| Inner ring reference | IR12X16X20 |
| Cr - Dynamic load rating | 7.75 kN |
| C0r - Static load rating | 9.7 kN |
| N - Grease lubrication limit speed | 10000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +100 Deg C |
