SKU: HK1814RS-EU

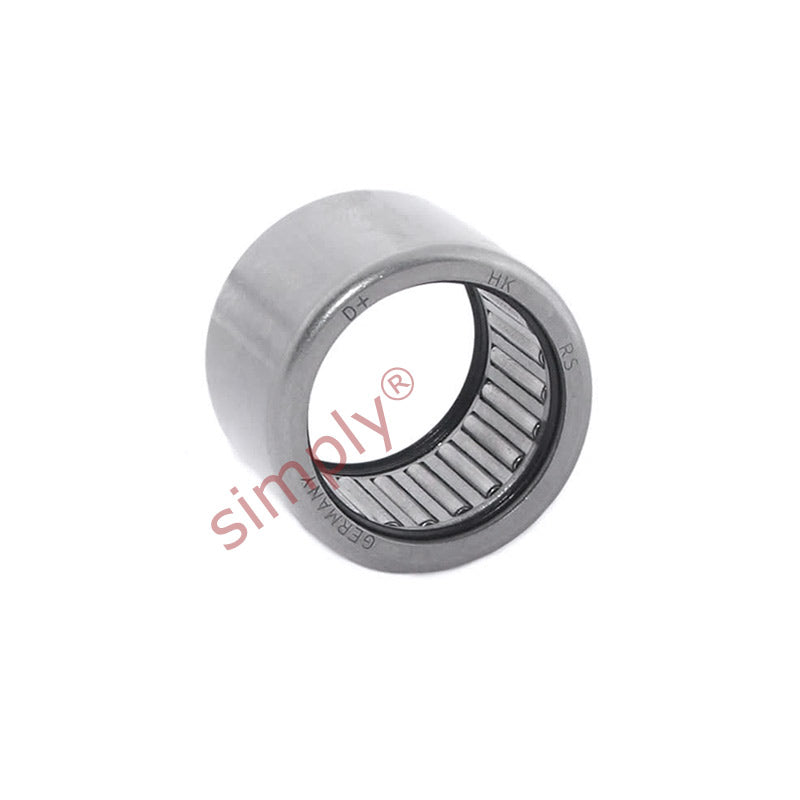

HK1814RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 18x24x14mm
HK1814RS Budget Drawn Cup Type Needle Roller Bearing Open End Type 18x24x14mm
Regular price
€5,95
ex VAT
Regular price
Sale price
€5,95
ex VAT
In stock
Price Break
10+
€3,80
19+
€3,59
29+
€3,54
39+
€3,50
49+
€3,46
74+
€3,41
99+
€3,20
199+
€3,16
249+
€3,12
499+
€3,07
999+
€2,99
Description
Description
|
Budget HK.. RS and HK.. 2RS Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 18mm
- Outside Diameter:
- 24mm
- Width:
- 14mm
- Seals / Shields:
- Rubber Sealed
Technical
Technical
| Fw | 18mm |
|---|---|
| D | 24mm |
| C | 14mm |
| Dynamic load C | 7920 N |
| Static load Co | 11200 N |
| Fatigue load limit Pu | 1270 N |
| Speed in grease | 9500 rpm |
| r1r2 min | 0.8mm |
| Da max | 19mm |
| ra max | 0.8mm |
| Inner ring | LR/IR15x18x16.5 |
| Weight | 14 g |
