SKU: HK2025-EU

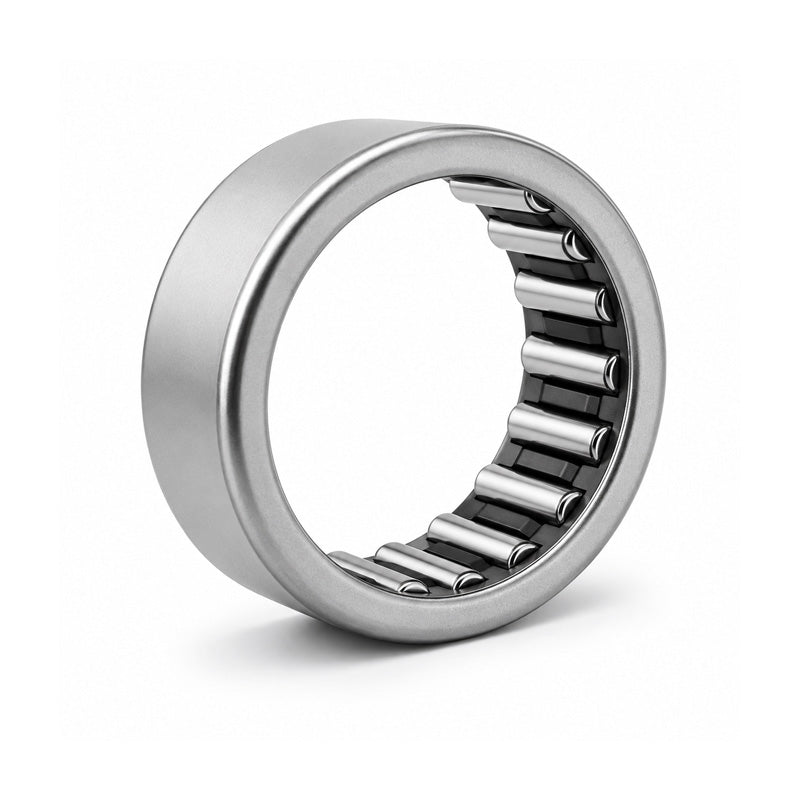

HK2025 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x25mm
HK2025 Budget Drawn Cup Type Needle Roller Bearing Open End Type 20x26x25mm
Regular price
€6,95
ex VAT
Regular price
Sale price
€6,95
ex VAT
In stock
Price Break
10+
€5,09
19+
€4,80
29+
€4,75
39+
€4,69
49+
€4,63
74+
€4,58
99+
€4,29
199+
€4,23
249+
€4,17
499+
€4,12
999+
€4,00
Description
Description
|
Budget HK Drawn Cup Type Needle Roller Bearings: As the name suggests are needle roller bearings with a deep drawn thin-walled outer ring with open ends. They are characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required. The RS and 2RS series are fitted with one or two nitrile rubber seals dependent on the suffix. Benefits: Compact low cross section design, high load bearing, low cost and economical, available in sealed and unsealed options. Requires only a bored housing for deployment, the simplest of housing designs. |
- Brand / Quality:
- EU Budget - Economy Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 25mm
Technical
Technical
| Fw | 20mm |
|---|---|
| D | 26mm |
| C | 25mm |
| Dynamic load C | 9100 N |
| Static load Co | 14800 N |
| Speed in oil | 9900 rpm |
| Mass | 0.028 kg |
