SKU: HK2030ZWD-NTN

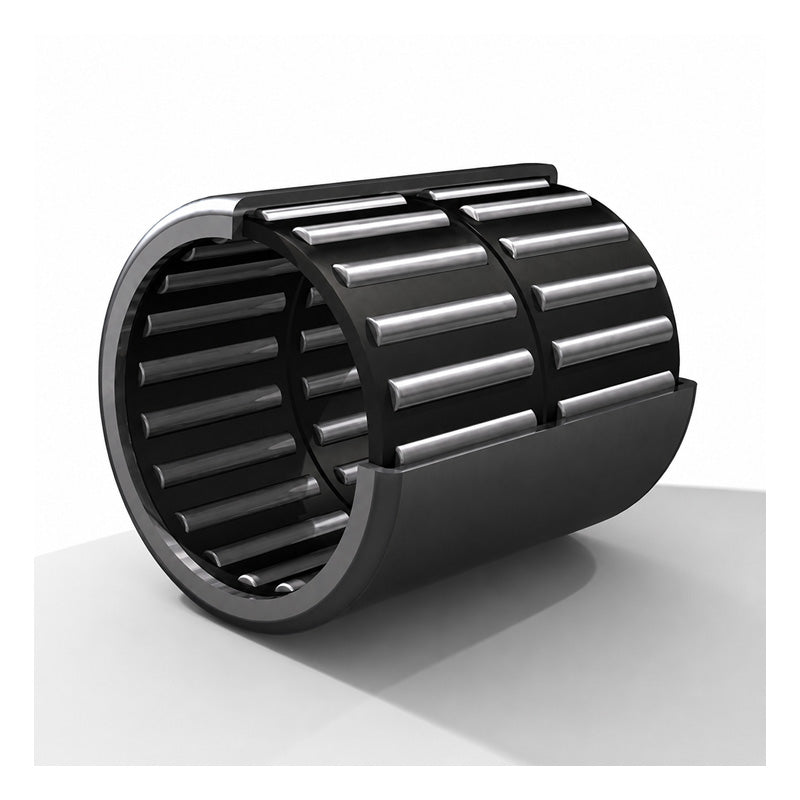

NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm
NTN HK2030ZWD Drawn Cup Double Row Needle Roller Bearing with Open End 20x26x30mm
Regular price
€8,19
ex VAT
Regular price
Sale price
€8,19
ex VAT
In stock
Price Break
10+
€7,29
19+
€6,88
29+
€6,80
39+
€6,72
49+
€6,63
74+
€6,55
99+
€6,14
199+
€6,06
249+
€5,98
499+
€5,90
999+
€5,73
Couldn't load pickup availability
Description
Description
HK Type Drawn Cup Needle Roller Bearings: These needle roller bearings deliver high load capacity in a compact, low-profile design. Easy to install and cost-effective, characterised by low sectional height and high load carrying ability. They are ideal where a very compact and economical bearing arrangement is required and are available in both open and sealed varieties.
Benefits: Compact design, low cost, simple design
- Brand / Quality:
- NTN - High Quality
- Inside Diameter:
- 20mm
- Outside Diameter:
- 26mm
- Width:
- 30mm
Technical
Technical
| Fw - Inside diameter | 20mm |
|---|---|
| D - Outside diameter | 26mm |
| C - Width of bearing, drawn cup or outer ring | 30mm |
| Lubrication hole on outer ring? | Yes |
| k - Lubrication hole diameter | 2.5mm |
| Inner ring reference | IR17X20X30.5 |
| Cr - Dynamic load rating | 22.2 kN |
| C0r - Static load rating | 40 kN |
| N - Grease lubrication limit speed | 8000 tr/min |
| N - Oil lubrication limit speed | 12000 tr/min |
| Tmin - Minimum operating temperature | -20 Deg C |
| Tmax - Maximum operating temperature | +120 Deg C |
